2000W Handheld Fiber Laser Welding Machine
2000W handheld fiber laser welding machine for medium-thickness stainless steel and aluminum. 5mm penetration, laser crosshair alignment, dual-mode operation, water-cooled for 8+ hour shifts. CE compliant.
Get a QuoteProduct Detail
High-Power Handheld Fiber Laser Welding

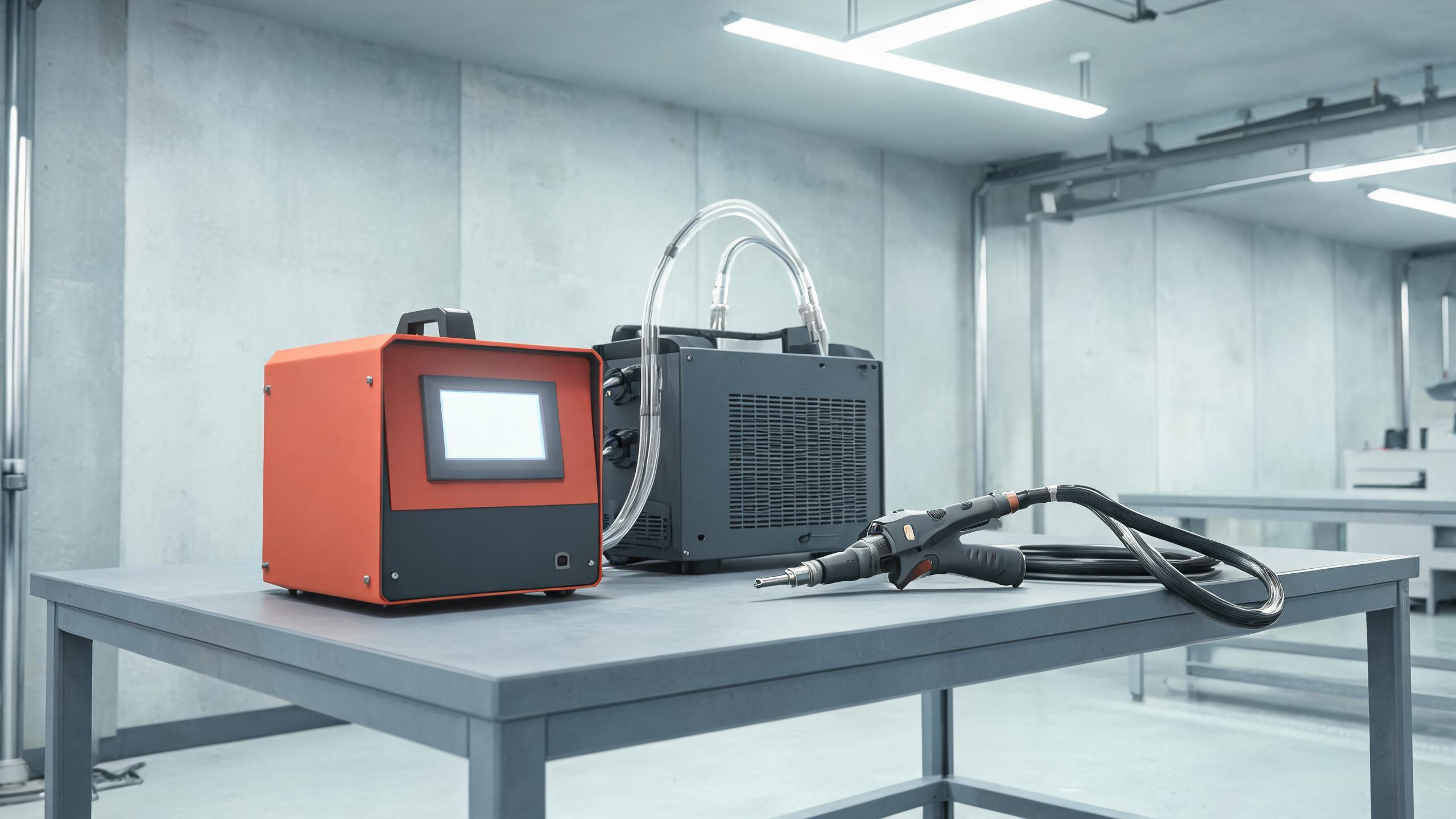

2000W Handheld Fiber Laser Welding Machine
Buyer Challenges & Solutions
Fabricators working with medium-thickness stainless steel and aluminum face a dilemma: TIG and MIG welding are too slow for production volumes, while fixed automated laser welding stations are too expensive and inflexible for varied part geometries. The 2000W handheld fiber laser welder bridges this gap-offering 5mm penetration in stainless steel and 4mm in aluminum with the mobility of a handheld gun, at a fraction of the cost of robotic welding systems.
Unlike the existing 2000W fixed-head model designed for automated production lines, this handheld version gives operators the freedom to weld complex joints, oversized parts, and on-site assemblies that cannot be moved to a stationary station.
Product Description
The Xinhong 2000W handheld fiber laser welding machine combines a 2000W IPG/RAYCUS fiber laser source with a lightweight 2.2kg ergonomic welding gun. The system achieves deep penetration welds-stainless steel to 5mm, aluminum alloys to 4mm, and carbon steel to 6mm-with minimal spatter and a small heat-affected zone. Dual-mode operation (continuous wave and pulsed) adapts to different material thicknesses and joint types. The integrated vision system with laser crosshair alignment ensures precise joint targeting, while the water-cooled design supports 8+ hour continuous production shifts.
Technical Specifications
| Parameter | Value |
|---|---|
| Laser Power | 2000W |
| Laser Source | IPG / RAYCUS fiber laser |
| Wavelength | 1080 nm |
| Max Penetration - Stainless Steel | 5.0 mm |
| Max Penetration - Aluminum | 4.0 mm |
| Max Penetration - Carbon Steel | 6.0 mm |
| Weld Speed | 0.5–2.0 mm/s |
| Weld Precision | ±0.1 mm |
| Gun Weight | 2.2 kg |
| Operating Modes | Continuous wave / Pulsed |
| Alignment System | Vision system with laser crosshair |
| Cooling System | Water circulation (dual temperature) |
| Parameter Memory | 100 profiles |
| Power Supply | 380V, 3-phase, 50/60Hz |
| Certifications | CE compliant |
Key Features
Achieves 5mm penetration in stainless steel and 4mm in aluminum-deep enough for structural joints in kitchen equipment, elevator panels, and automotive components.
Integrated vision system with laser crosshair alignment ensures the weld beam hits the joint centerline precisely-critical for tight-tolerance structural welds.
Continuous wave for deep penetration on thick joints; pulsed mode for heat-sensitive thin materials and dissimilar metal joining. Switch instantly via touch panel.
Store up to 100 weld parameter sets for different materials, thicknesses, and joint types. Instant recall eliminates trial-and-error setup on recurring jobs.
Dual-temperature water cooling maintains stable laser output through extended production shifts without thermal degradation of beam quality.
Why Choose Xinhong
- Established manufacturer since 2005 - Nearly two decades of fiber laser equipment R&D and production experience.
- IPG / RAYCUS laser sources - World-class beam quality with 35,000+ hour service life. Choose the source brand that matches your regional support needs.
- CE-compliant safety - Safety interlocks, laser radiation protection, and full compliance documentation for European markets.
- Schneider Electric components - Electrical control system built with CE/UL-certified Schneider Electric parts for reliability.
- Global after-sales support - Remote diagnostics, spare parts supply, and installation guidance for international customers.
Applications
The 2000W handheld laser welder is widely used in:
- Kitchen equipment and food-grade stainless steel fabrication
- Elevator cabin and door panel assembly
- Automotive body panel and component welding
- Electrical cabinet and switchgear frame joining
- Pressure vessel and tank seam welding
- Ship and yacht interior metalwork
FAQ
How does the handheld 2000W differ from the fixed 2000W model?
The handheld version offers a portable welding gun for manual operation on varied part geometries and on-site work. The fixed model uses a stationary scanning head with robotic arm integration for automated high-volume production. Same laser power, different application scenarios.
What is the maximum weld thickness?
Stainless steel up to 5mm, aluminum alloys up to 4mm, and carbon steel up to 6mm. Weld speed varies with thickness and material type-thicker materials require slower travel speeds.
Does the laser crosshair alignment require calibration?
The crosshair is factory-calibrated and requires no routine adjustment. If the gun is dropped or impacted, a simple recalibration procedure in the operation manual realigns the crosshair with the beam.
What shielding gas is required?
Argon is recommended for stainless steel and aluminum to produce bright, oxide-free weld beads. For carbon steel, argon or nitrogen can be used. Gas consumption is typically 5-15 L/min depending on nozzle size and weld speed.
Is the machine CE certified?
Yes. Xinhong's fiber laser welding machines are CE compliant for European industrial safety standards. Full compliance documentation is provided with every machine.
Ready for Deeper Penetration Welding?
Get a customized quote for the 2000W handheld fiber laser welding machine. Tell us your materials, thickness range, and production volume-we'll recommend the optimal configuration.
