3000W Fiber Laser Cutting Machine
3000W fiber laser cutting machine for industrial sheet metal. Cuts carbon steel to 12mm, stainless steel to 8mm with ±0.05mm accuracy. 1500x3000mm bed, 50000+ hour tube life, CE certified for European markets.
Highlights
- Cuts carbon steel to 12mm and stainless steel to 8mm thickness
- Positioning accuracy of ±0.05mm for precision work
- 50000+ hour tube lifespan with sealed resonator design
- 1500 x 3000mm working area for sheet metal production
- Integrated CNC controller with batch job scheduling
- Air-cooled system for reliable continuous operation
- Red laser pointer for easy material alignment
Specifications
| Laser Power | 3000W |
|---|---|
| Max Cutting Thickness | Carbon Steel 12mm, Stainless Steel 8mm |
| Working Area | 1500 x 3000 mm |
| Positioning Accuracy | +/- 0.05 mm |
| Power Supply | 220V Single Phase |
| Cooling System | Air Cooled |
Product Detail

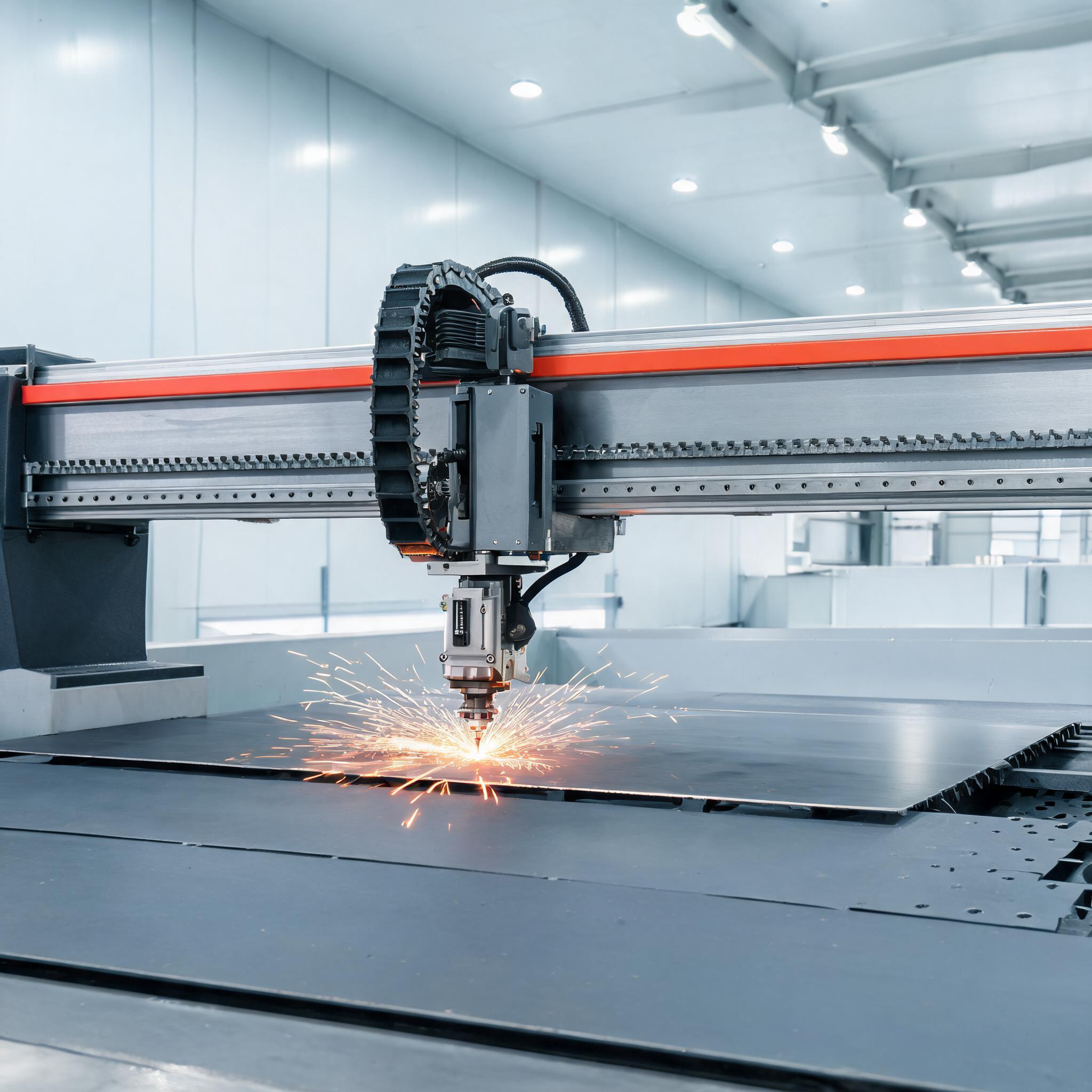

3000W Fiber Laser Cutting Machine
The 3000W Fiber Laser Cutting Machine from Shandong Xinhong CNC handles the mid-range thickness range where most industrial sheet metal work happens. It cuts carbon steel to 12mm and stainless steel to 8mm with ±0.05mm positioning accuracy across a 1500×3000mm working area - the dimensions that cover standard mill sheet sizes without pre-cutting. The sealed resonator tube delivers 50,000+ hours of service life, and the integrated CNC controller with batch job scheduling manages repeat production runs with minimal operator intervention.
Buyer Pain Points & Solutions
Core Advantages
Technical Specifications
| Parameter | Value |
|---|---|
| Laser Power | 3000W |
| Laser Source | Sealed resonator fiber tube (IPG / RAYCUS / GW optional) |
| Max Cutting Thickness (Carbon Steel) | 12mm |
| Max Cutting Thickness (Stainless Steel) | 8mm |
| Working Area | 1500 × 3000 mm |
| Positioning Accuracy | ±0.05 mm |
| Power Supply | 220V Single Phase |
| Cooling System | Air Cooled |
| Tube Lifespan | 50,000+ hours |
| Control System | CNC controller with batch job scheduling |
| Alignment | Red laser pointer |
| Certifications | CE Certified |
Application Industries
Manufacturer Backing
Manufactured by Shandong Xinhong CNC Technology Co., Ltd., an ISO 9001:2015-certified and CE-compliant fiber laser equipment manufacturer. Xinhong's product line spans 1000W to 30000W fiber laser cutting systems, welding machines, and auxiliary equipment. The company partners with IPG (USA), RAYCUS, and GW for laser sources, ensuring parts availability and beam quality consistency. Technical documentation, operation manuals, and operator training are provided with every machine. Custom configurations for bed size, laser source brand, and auxiliary systems are available on request.
FAQ
What is the maximum cutting thickness for different materials?
Carbon steel up to 12mm and stainless steel up to 8mm. The system also handles aluminum and copper within reduced thickness ranges. Cutting speed decreases with material thickness - detailed speed charts are available on request.
How does batch job scheduling work?
The CNC controller stores multiple cutting programs and executes them in sequence. Operators load a sheet, start the batch queue, and the machine cuts each program in order without manual program changes between jobs. This maximizes plate utilization and reduces idle time.
What is the advantage of the red laser pointer?
The red laser pointer provides a visual reference for aligning the cutting head with the material edge or reference marks on the sheet. This speeds up setup for each new sheet load and reduces first-cut alignment errors that waste material.
Does the machine require a separate chiller?
No. The 3000W system uses air cooling, which eliminates the need for a separate water chiller unit. This simplifies installation and reduces maintenance, though for 24/7 continuous production a supplementary cooling system may be recommended depending on ambient temperature.
Is the machine CE certified for European export?
Yes, Xinhong's fiber laser cutting machines are CE certified for European industrial safety compliance, meeting requirements for direct export to European markets.
