1000W Handheld Fiber Laser Welding Machine
1000W handheld fiber laser welding machine for thin sheet metal and precision joints. Welds stainless steel up to 2mm, aluminum to 1.5mm with minimal heat distortion. Lightweight ergonomic gun, water-cooled, CE compliant.
Get a QuoteProduct Detail
Portable Handheld Fiber Laser Welding

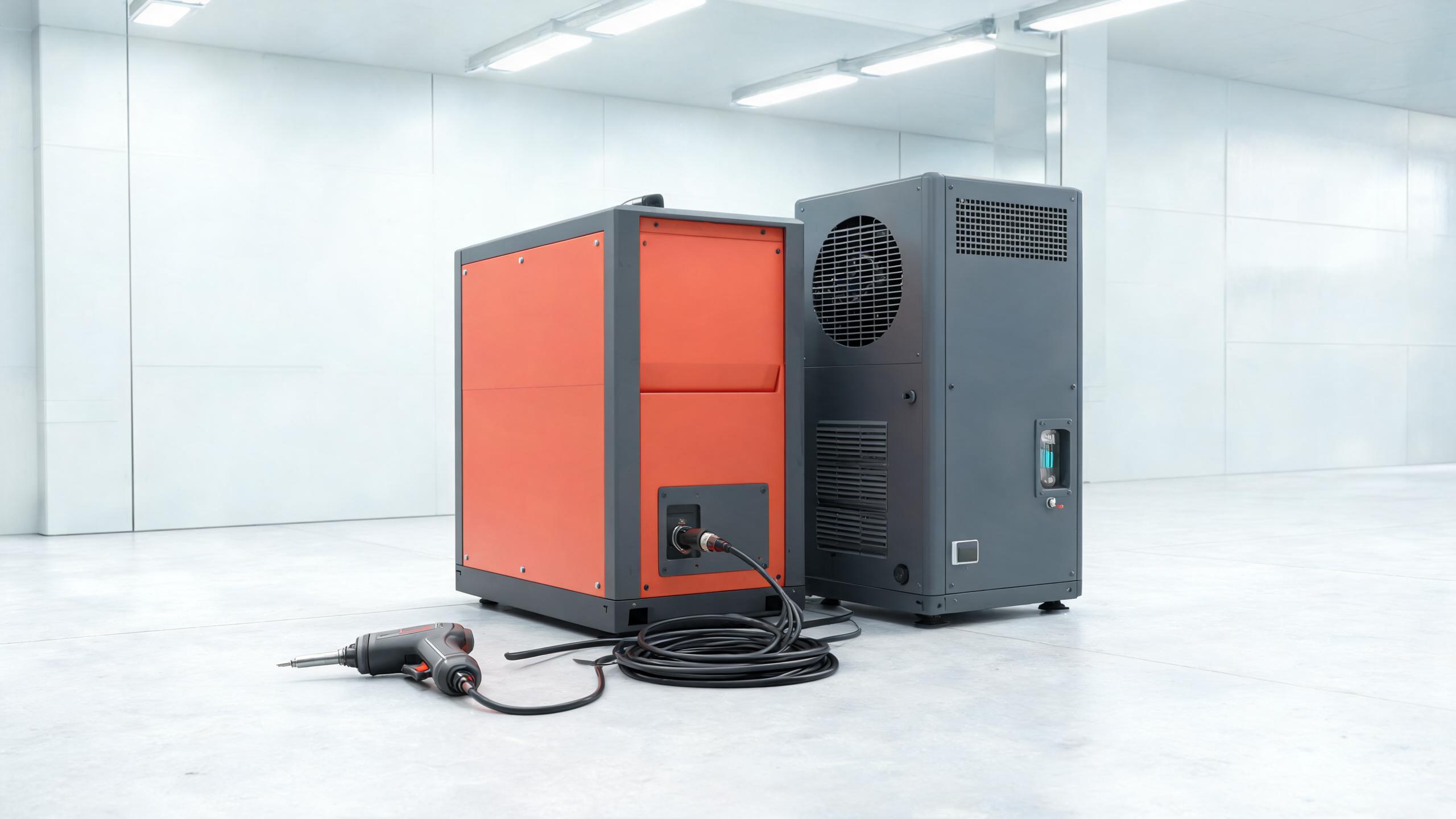

1000W Handheld Fiber Laser Welding Machine
Buyer Challenges & Solutions
Small fabrication shops and job shops working with thin stainless steel and aluminum often rely on TIG welding, which is slow, requires highly skilled operators, and leaves visible heat marks. The 1000W handheld fiber laser welder solves this by delivering fast, clean welds with minimal heat-affected zone—no flux, no filler wire required for many thin-sheet applications, and no post-weld grinding.
For workshops that need portability—moving the welding tool to the workpiece rather than bringing the workpiece to a fixed station—the handheld design with a lightweight 1.8kg gun and flexible cable makes it possible to weld large or awkwardly shaped parts in place.
Product Description
The Xinhong 1000W handheld fiber laser welding machine pairs a 1000W RAYCUS fiber laser source with an ergonomic handheld welding gun for precision thin-sheet welding. The system welds stainless steel up to 2mm, aluminum alloys to 1.5mm, and carbon steel to 2.5mm with smooth, aesthetic weld beads. Water circulation cooling maintains safe operating temperatures during extended production shifts, while the digital control panel stores up to 50 weld parameter profiles for quick job changeovers.
Technical Specifications
| Parameter | Value |
|---|---|
| Laser Power | 1000W |
| Laser Source | RAYCUS fiber laser |
| Wavelength | 1080 nm |
| Max Penetration - Stainless Steel | 2.0 mm |
| Max Penetration - Aluminum | 1.5 mm |
| Max Penetration - Carbon Steel | 2.5 mm |
| Weld Speed | 0.5–10 mm/s |
| Weld Precision | ±0.1 mm |
| Gun Weight | 1.8 kg |
| Cooling System | Water circulation |
| Operating Modes | Continuous wave / Pulsed |
| Parameter Memory | 50 profiles |
| Power Supply | 220V, single-phase, 50/60Hz |
| Certifications | CE compliant |
Key Features
At just 1.8kg, the ergonomic welding gun reduces operator fatigue during batch production, enabling longer welding sessions without discomfort.
For thin-sheet lap and butt joints, the laser melts the base material directly—no filler wire or flux needed, reducing consumable costs and simplifying operation.
Runs on standard 220V single-phase power—no industrial three-phase wiring required, making it ideal for small workshops and on-site repairs.
Continuous wave mode for steady penetration and pulsed mode for heat-sensitive thin materials—switch between modes via the touch panel.
Store and instantly recall up to 50 weld parameter sets for recurring jobs—eliminating manual reconfiguration between product changeovers.
Why Choose Xinhong
- Established manufacturer since 2005 — Shandong Xinhong CNC Technology Co., Ltd. brings nearly two decades of fiber laser expertise to every welding system.
- Genuine RAYCUS laser source — 35,000+ hour service life with consistent beam quality, not generic or rebranded components.
- CE-compliant design — Safety interlocks and laser radiation protection meet European workplace safety standards.
- Comprehensive after-sales support — Remote diagnostics, spare parts supply, and installation guidance for international customers.
Applications
The 1000W handheld laser welder is ideal for:
- Kitchen equipment and stainless steel sink fabrication
- Advertising signage and letter welding
- Door and window frame assembly
- Electrical cabinet and enclosure sealing
- Decorative metalwork and art fabrication
- On-site repair and maintenance welding
FAQ
What materials and thicknesses can the 1000W welder handle?
Stainless steel up to 2mm, aluminum alloys up to 1.5mm, and carbon steel up to 2.5mm. For thicker materials, consider our 1500W or 2000W handheld models.
Does it require filler wire or shielding gas?
For most thin-sheet lap and butt joints, no filler wire is needed—the laser melts the base material directly. Argon shielding gas is recommended for stainless steel and aluminum to prevent oxidation and ensure bright weld beads.
Is operator training required?
Basic operation can be learned in 1–2 days. The touch panel is intuitive, and the handheld gun requires no special welding technique—just guide the gun along the joint. We provide operation manuals and video tutorials with every machine.
What power supply does it need?
Standard 220V single-phase power—the same as a standard wall outlet. No three-phase wiring or electrical panel upgrade is needed, making it suitable for small workshops and on-site work.
Is the machine CE certified?
Yes. Xinhong's fiber laser welding machines are CE compliant for European industrial safety standards. Full compliance documentation is provided with every machine.
Upgrade to Laser Welding Today
Get a customized quote for the 1000W handheld fiber laser welding machine. Tell us your materials and typical thickness range—we'll recommend the optimal configuration.
