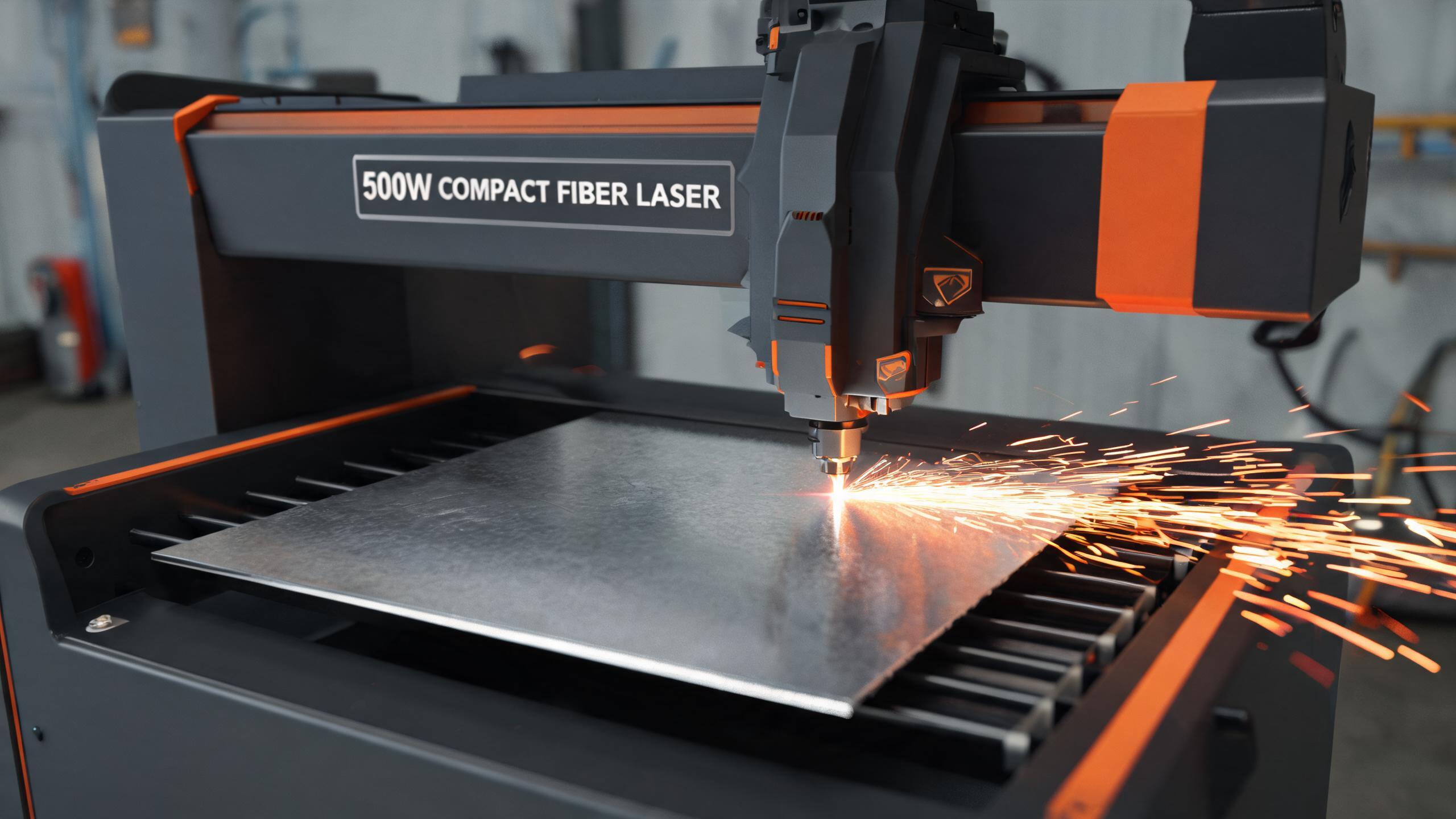

500W Economy Fiber Laser Cutting Machine
500W economy fiber laser cutting machine for thin sheet metal cutting. Cuts carbon steel to 3mm, stainless steel to 2mm. Compact 1300x900mm working area, 220V single-phase power, RAYCUS laser source. Ideal for small workshops, signage, and start-up fabricators.
Get a QuoteProduct Detail
Economy Fiber Laser Cutting Machine
500W Economy Fiber Laser Cutting Machine
Buyer Challenges & Solutions
Small workshops, hobbyist fabricators, and start-up sheet metal businesses face a common dilemma: they need laser cutting capability for thin sheet work but cannot justify the investment in a high-power machine. Traditional CO2 lasers require frequent gas replacement and mirror alignment, while entry-level fiber lasers often lack the precision needed for commercial-quality output. The 500W economy fiber laser cutting machine solves this by offering fiber laser technology at an entry-level price point-no gas consumption, no mirror maintenance, and 35,000+ hour laser source life.
With a compact 1300×900mm working area and 220V single-phase power supply, this machine plugs into standard workshop power without requiring industrial three-phase infrastructure-making it ideal for small fabrication shops, prototyping labs, and technical schools.
Product Description
The Xinhong 500W economy fiber laser cutting machine is designed for thin sheet metal processing with maximum affordability. Powered by a reliable 500W RAYCUS fiber laser source, it cuts carbon steel up to 3mm, stainless steel to 2mm, and aluminum to 1.5mm with clean, burr-free edges. The machine features a compact bench-friendly footprint, auto-focus cutting head, and CypCut control software for easy programming and nesting. It is the perfect entry point for businesses upgrading from manual cutting or shear methods to CNC laser precision.
Technical Specifications
| Parameter | Value |
|---|---|
| Laser Power | 500W |
| Laser Source | RAYCUS fiber laser |
| Working Area | 1300 × 900 mm |
| Max Cutting Speed | 20 m/min (dependent on material & thickness) |
| Cutting Precision | ±0.02 mm |
| Repeatability | ±0.02 mm |
| Max Cutting Thickness - Carbon Steel | 3 mm |
| Max Cutting Thickness - Stainless Steel | 2 mm |
| Max Cutting Thickness - Aluminum | 1.5 mm |
| Control System | CypCut nesting & control software |
| Laser Wavelength | 1080 nm |
| Cooling System | Water-cooled (industrial chiller) |
| Power Supply | 220V, single-phase, 50/60Hz |
| Cutting Head | Auto-focus, air-assist |
| Machine Dimension | 1800 × 1400 × 1200 mm (approx.) |
Key Features
Operates on standard 220V single-phase power - no industrial three-phase wiring required. Perfect for small workshops and retail locations.
Bench-friendly design fits in small workshops. Total footprint under 2m × 1.5m - significantly smaller than full-size machines.
Fiber laser requires no laser gas - only compressed air for assist. Eliminates ongoing CO2 gas costs and mirror alignment maintenance.
Automatic focus adjustment every 5mm of travel maintains consistent beam quality, reducing setup time and operator skill requirements.
User-friendly CypCut CAM software with auto-nesting, common-edge cutting, and DXF/AI/PLT file import - designed for operators with minimal CNC experience.
Why Choose Xinhong
- Established manufacturer since 2005 - Shandong Xinhong CNC Technology Co., Ltd. brings nearly two decades of fiber laser expertise to every machine, from economy models to 30000W industrial systems.
- Genuine RAYCUS laser source - We use authentic RAYCUS fiber laser sources with 35,000+ hour service life, not generic or rebranded components.
- Lowest total cost of ownership - No laser gas, no mirrors, minimal maintenance. The 500W model has the lowest operating cost per cutting hour in our product line.
- Scalable upgrade path - Start with 500W and upgrade to 1000W or 1500W as your business grows. The machine frame accommodates higher laser powers.
- Remote support included - Free remote technical support via video call, plus comprehensive operation manuals and tutorial videos.
Applications
The 500W economy fiber laser cutting machine is ideal for:
- Thin sheet metal fabrication (0.5-3mm carbon steel)
- Advertising signage and letter cutting
- Jewelry and craft metalwork
- Electrical enclosure prototyping
- Technical school and training programs
- Hobbyist and start-up fabrication businesses
FAQ
What is the maximum thickness the 500W laser can cut?
The 500W fiber laser can cut carbon steel up to 3mm, stainless steel up to 2mm, and aluminum up to 1.5mm. For thicker materials, consider our 1000W or 1500W models.
Does this machine require three-phase power?
No. The 500W model operates on standard 220V single-phase power, making it suitable for small workshops without industrial electrical infrastructure.
What file formats does the control software support?
The CypCut software supports DXF, AI, PLT, and DWG file formats. You can design parts in any CAD software and import them directly for cutting.
Is this machine suitable for commercial production?
Yes, the 500W model is suitable for light commercial production of thin sheet parts. For higher volume or thicker materials, we recommend upgrading to 1000W or 2000W models. Many customers start with 500W and upgrade as demand grows.
What maintenance does the machine require?
Maintenance is minimal: regular cleaning of the protective lens, checking chiller water levels, and occasional lubrication of linear guide rails. The fiber laser source itself requires no maintenance - no gas replacement, no mirror alignment.
Start Your Laser Cutting Business Affordably
Get a quote for the 500W economy fiber laser cutting machine. Tell us your materials and cutting needs - we'll help you choose the right configuration.
