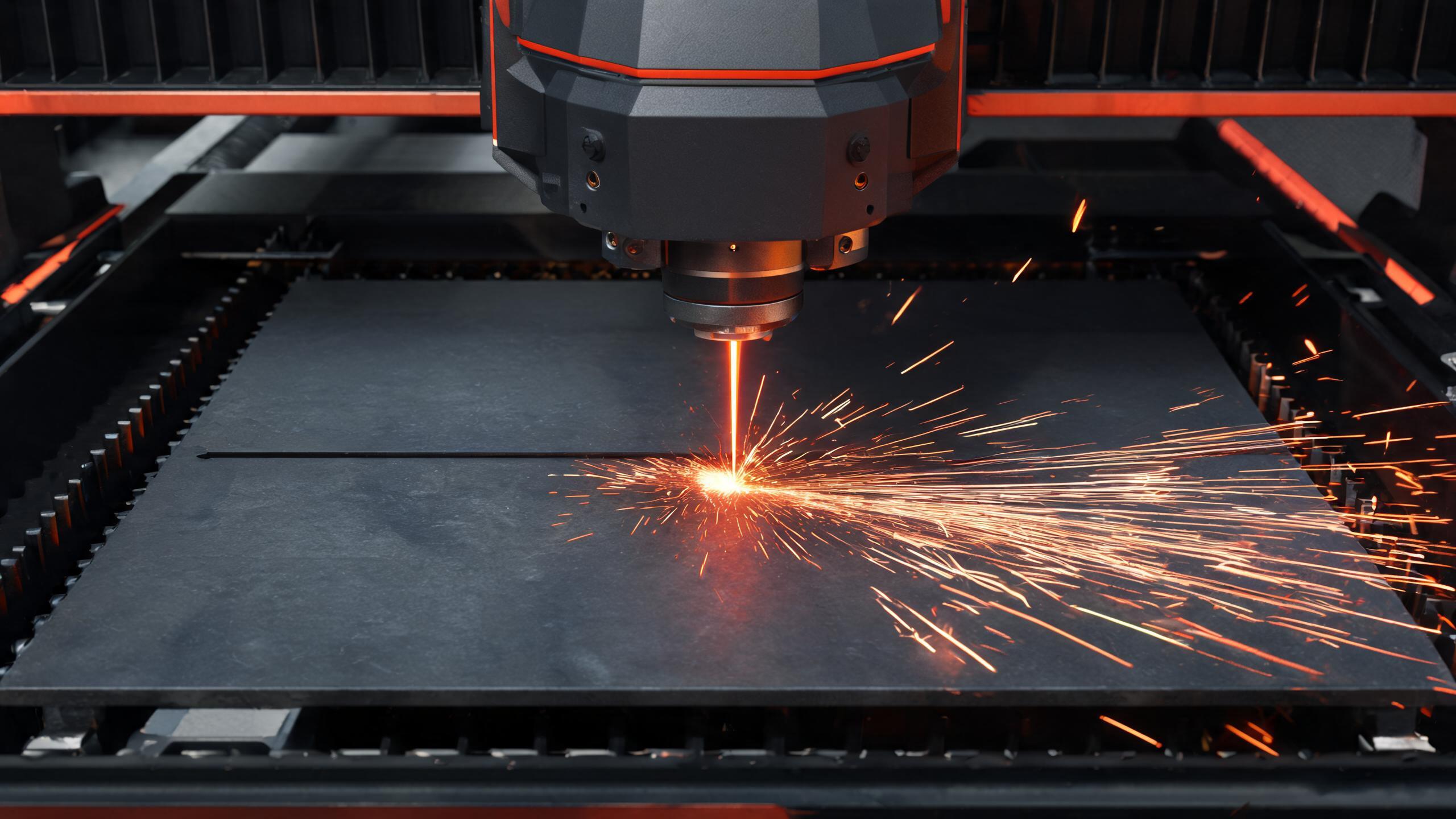

8000W Fiber Laser Cutting Machine
8000W high-power fiber laser cutting machine for thick plate processing — cuts carbon steel up to 25mm, stainless steel up to 16mm. Large 2000x6000mm working bed, ±0.05mm precision, IPG/RAYCUS laser source, CE certified for European markets.
Get a QuoteProduct Detail
8000W Fiber Laser Cutting Machine
For fabricators handling thick steel plates at scale, the gap between a 6000W and a true heavy-industry laser matters. The 8000W Fiber Laser Cutting Machine from Shandong Xinhong CNC bridges that gap — delivering enough beam power to cut carbon steel up to 25mm and stainless steel up to 16mm in a single pass, without the cost premium of 12kW+ systems. Built on a welded stress-relieved gantry frame with a 2000×6000mm working bed, it handles oversized plates common in shipbuilding, structural steel, and heavy machinery manufacturing.
Buyer Pain Points & Solutions
Core Advantages
Technical Specifications
| Parameter | Value |
|---|---|
| Laser Power | 8000W |
| Laser Source | IPG / RAYCUS / GW (optional) |
| Max Cutting Thickness (Carbon Steel) | 25mm |
| Max Cutting Thickness (Stainless Steel) | 16mm |
| Max Cutting Thickness (Aluminum) | 12mm |
| Working Area | 2000 × 6000 mm |
| Positioning Accuracy | ±0.05 mm |
| Repeatability | ±0.03 mm |
| Max Cutting Speed | 30 m/min (depending on material and thickness) |
| Control System | Schneider Modicon M241 PLC |
| Drive System | Servo motor + precision rack & pinion |
| Cooling | Dual-temperature water chiller (constant temperature) |
| Power Supply | 380V / 50Hz / 3-phase (customizable) |
Application Industries
Manufacturer Backing
Manufactured by Shandong Xinhong CNC Technology Co., Ltd., established in 2005, an ISO 9001:2015-certified and CE-compliant fiber laser equipment manufacturer. Xinhong's production facility is equipped with high-power laser cutting systems from 2000W to 30000W, serving automotive, electrical, and sheet metal industries worldwide. The company maintains partnerships with world-class laser source manufacturers including IPG (USA), RAYCUS, and GW, ensuring long-term beam quality and parts availability. Technical documentation, operation manuals, and training are provided with every machine. Custom configurations for working area, laser source brand, and auxiliary systems are available on request.
FAQ
What is the maximum cutting thickness for different materials?
With 8000W power: carbon steel up to 25mm, stainless steel up to 16mm, and aluminum up to 12mm. Actual performance depends on material grade, surface condition, and assist gas pressure.
Can I customize the working area?
Yes. While the standard bed is 2000×6000mm, we can customize dimensions to match your material supply and facility layout. Contact us with your plate sizes for a tailored configuration.
What assist gas options are supported?
The machine supports nitrogen (N2) and oxygen (O2) cutting. For thick stainless steel and aluminum, high-purity nitrogen (≥99.99%) is recommended for clean, oxide-free edges. Xinhong also supplies compatible PSA nitrogen generators.
What after-sales support is provided?
Technical documentation, operation manuals, remote troubleshooting, and operator training are included. Spare parts and consumables are available from Xinhong directly. Please contact us for details on service terms for your region.
Is the machine CE certified?
Yes, Xinhong's fiber laser cutting machines are CE certified for European industrial safety compliance, meeting the requirements for direct export to European markets.
