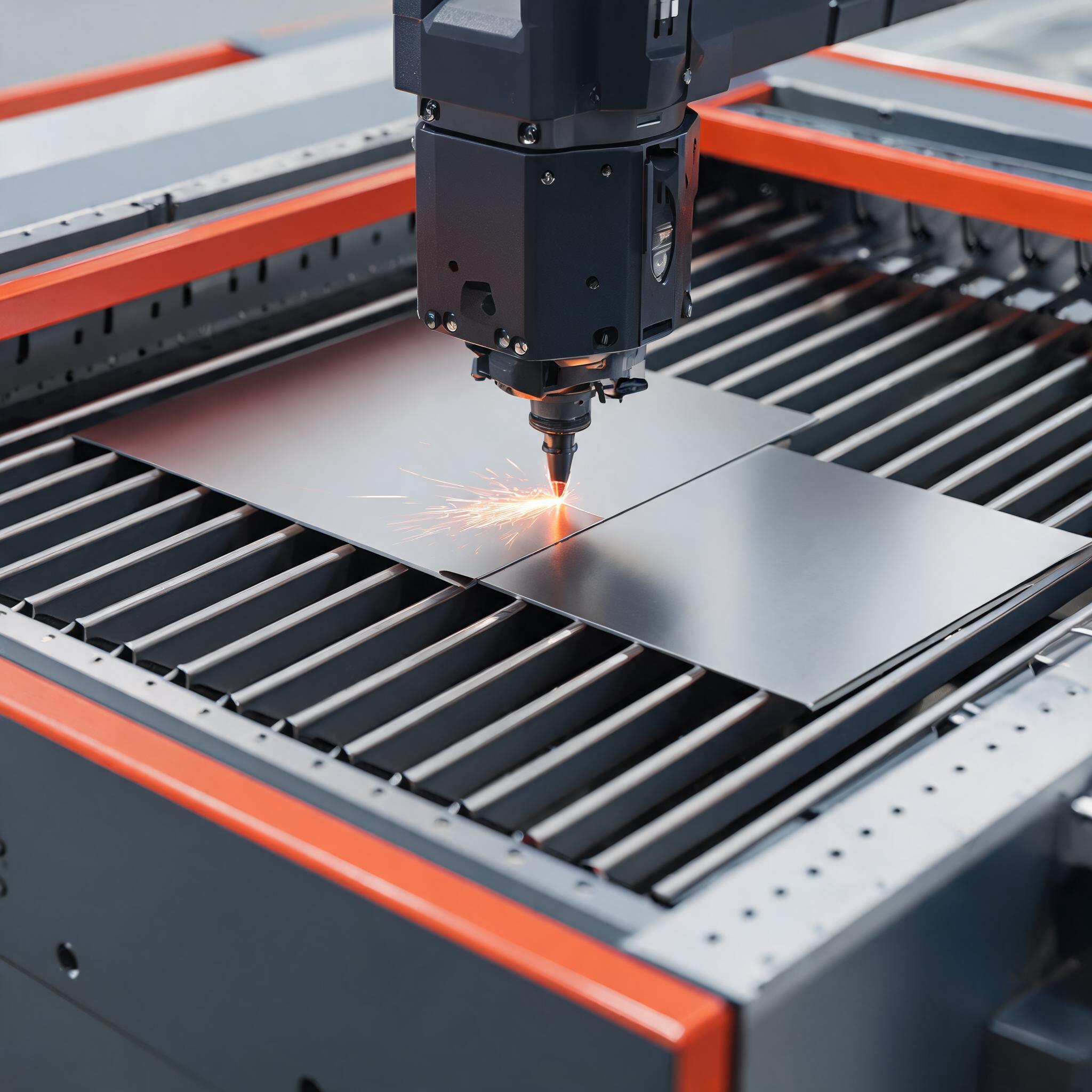

1000W Compact Fiber Laser Cutting Machine
Compact 1000W fiber laser cutting machine for thin sheet metal - cuts carbon steel to 3mm, stainless steel to 2mm with ±0.02mm precision. 1000x1500mm bed, 220V single-phase, ideal for small workshops and prototyping labs.
Highlights
- Compact 1000 x 1500mm cutting area for bench-top setup
- Cuts carbon steel to 3mm and stainless steel to 2mm
- 220V single-phase power supply, no three-phase infrastructure needed
- Water-cooled tube with 35000+ hour lifespan
- Automatic focus adjustment every 5mm of travel maintains beam quality
- Air-assist system for clean edge cutting and minimal oxidation
- Optional dual-head configuration for simultaneous batch processing
Specifications
| Laser Power | 1000W |
|---|---|
| Max Cutting Thickness | Carbon Steel 3mm, Stainless Steel 2mm |
| Working Area | 1000 x 1500 mm |
| Precision | +/- 0.02 mm |
| Power Requirement | 220V Single Phase |
| Tube Life | 35000+ hours |
Product Detail
1000W Compact Fiber Laser Cutting Machine
Small fabricators and prototyping labs need fiber laser precision without the footprint and power requirements of industrial-scale systems. The 1000W Compact Fiber Laser Cutting Machine from Shandong Xinhong CNC delivers ±0.02mm cutting precision on thin sheet materials in a bench-top format that runs on standard 220V single-phase power. With a 1000×1500mm cutting bed, it handles carbon steel up to 3mm, stainless steel up to 2mm, and thin non-ferrous metals — the material range that covers most signage, prototype, and small-batch hardware work.
Buyer Pain Points & Solutions
Core Advantages
Technical Specifications
| Parameter | Value |
|---|---|
| Laser Power | 1000W |
| Laser Source | IPG / RAYCUS / GW (optional) |
| Max Cutting Thickness (Carbon Steel) | 3mm |
| Max Cutting Thickness (Stainless Steel) | 2mm |
| Working Area | 1000 × 1500 mm |
| Positioning Accuracy | ±0.02 mm |
| Power Supply | 220V Single Phase |
| Cooling | Water-cooled sealed tube |
| Tube Lifespan | 35,000+ hours |
| Control System | CNC controller with job memory |
| Optional Configuration | Dual-head simultaneous cutting |
Application Industries
Manufacturer Backing
Manufactured by Shandong Xinhong CNC Technology Co., Ltd., an ISO 9001:2015-certified and CE-compliant fiber laser equipment manufacturer. Xinhong's product line spans 1000W to 30000W fiber laser cutting systems, welding machines, and auxiliary equipment. The company partners with IPG (USA), RAYCUS, and GW for laser sources, ensuring parts availability and beam quality consistency. Technical documentation, operation manuals, and operator training are provided with every machine. Custom configurations for bed size, laser source brand, and auxiliary systems are available on request.
FAQ
What materials can the 1000W machine cut?
Carbon steel up to 3mm, stainless steel up to 2mm, and thin non-ferrous metals including copper and brass. The system also handles galvanized and aluminized plates within the thickness range. For materials outside this range, consider our 1500W or 3000W models.
Does this machine require special electrical installation?
No. The 1000W machine runs on standard 220V single-phase power — the same as a standard wall outlet. No three-phase wiring or electrical panel upgrade is needed, making it suitable for small workshops and retrofit installations.
How does the automatic focusing system work?
The cutting head adjusts nozzle position every 5mm of travel, compensating for material surface variations and sheet warping. This maintains consistent beam focus and cut quality across the entire workpiece without manual recalibration.
Is the machine CE certified for European markets?
Yes, Xinhong's fiber laser cutting machines are CE certified for European industrial safety compliance, meeting requirements for direct export to European markets.
Can I upgrade to a dual-head configuration later?
The dual-head option can be specified at order time. Contact us to discuss whether your production volume justifies the dual-head upgrade and to configure the system for your specific part mix.
