Laser Safety Enclosure & Protective Cabin
Custom-built laser safety enclosure and protective cabin for fiber laser cutting machines. EN 12254 compliant OD 6+ polycarbonate safety windows, fail-safe magnetic door interlocks with laser power cutoff, welded steel frame, integrated extraction ports. CE marking and Machinery Directive compliant.
Get a QuoteProduct Detail
Laser Safety Enclosure & Protective Cabin
Why Open Laser Cutting Is a Risk You Can't Ignore
Fiber lasers operating at 1000W and above emit invisible infrared radiation that can cause permanent eye damage and skin burns from reflected or scattered beams-even several meters from the cutting point. Open-frame laser cutting machines without proper enclosures expose operators, nearby workers, and visitors to Class 4 laser hazards. European buyers face strict obligations under the Machinery Directive 2006/42/EC and laser safety standard EN 12254 to provide adequate physical guarding. Insurance providers increasingly require certified enclosures as a condition for coverage.
Eye & Skin Injury Risk
Diffuse reflections from cutting can cause retinal damage at distances up to 10+ meters without proper enclosure.
Regulatory Non-Compliance
CE marking and Machinery Directive compliance require effective guarding of Class 4 laser hazards. Without it, machines cannot legally operate in EU workplaces.
Insurance & Liability
Operating an unenclosed high-power laser may void workshop insurance policies and create employer liability for workplace injuries.
Productivity Disruption
Safety incidents or near-misses halt production, trigger investigations, and damage workforce trust in the working environment.
Product Overview

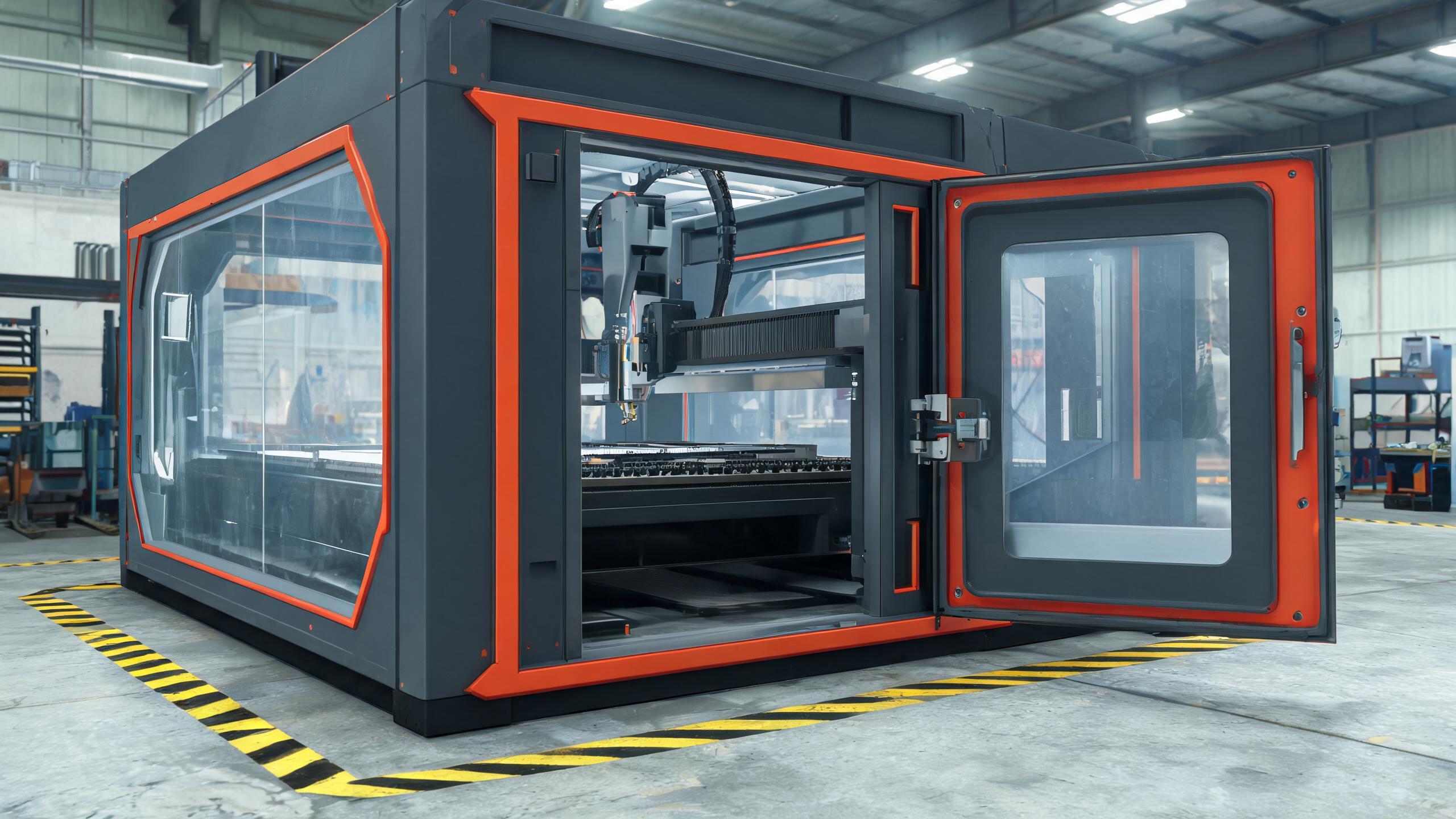

This laser safety enclosure and protective cabin is designed to fully surround fiber laser cutting machines, creating a Class 1 laser-safe workspace that contains hazardous radiation within the enclosure. The cabin features a welded steel tube frame with orange-red powder-coated panels, large-area laser-safe polycarbonate viewing windows (EN 12254 compliant), and motorized or manually operated interlocked sliding doors that automatically cut laser power when opened. Integrated extraction ports connect directly to fume removal systems, while LED interior lighting provides clear visibility of the cutting process. Each enclosure is custom-sized to fit the specific laser cutting machine model and workshop layout.
Core Features & Advantages
EN 12254 Laser Safety Windows
Polycarbonate viewing panels are rated to OD 6+ (Optical Density) across the 900–11000 nm wavelength range, blocking 99.9999% of scattered fiber laser radiation. Windows are independently tested to EN 12254 for laser barrier performance, providing safe viewing of the cutting process from any angle.
Magnetic Door Interlock with Laser Power Cutoff
Heavy-duty magnetic interlocks on all access doors immediately cut power to the laser source when any door opens-response time under 2 seconds. The interlock circuit is fail-safe: power loss, sensor failure, or wiring damage all result in laser shutdown, not continued operation.
Welded Steel Tube Frame with Powder Coating
50×50mm welded square steel tube frame provides rigid structural support and vibration damping. Orange-red powder coating (RAL 2002) resists scratches, corrosion, and workshop chemicals. Panel thickness of 1.5mm steel sheeting provides impact resistance against dropped parts and material handling.
Extraction Ports & Integrated Air Flow Design
Pre-engineered extraction ports on the enclosure connect directly to fume extraction systems, creating negative pressure inside the cabin that prevents fume escape through door gaps. Removable bottom panels allow for cutting bed cleaning and slag removal without disassembling the enclosure.
Tailored to Your Machine & Layout
Each enclosure is custom-designed to fit your specific laser cutting machine footprint, material loading direction, and workshop space constraints. Options include motorized lift doors for automated loading, pass-through conveyor openings, and integration with exchange table systems. CNC-machined mounting points ensure precise alignment with the machine base.
Technical Specifications
| Parameter | Specification |
|---|---|
| Laser Safety Rating | Class 1 enclosed system (from Class 4 laser source) |
| Window Protection Level | OD 6+ (Optical Density), 900–11000 nm |
| Window Standard | EN 12254 (Laser Barrier Standard) |
| Frame Material | 50×50mm welded square steel tube |
| Panel Material | 1.5mm steel sheet, powder-coated RAL 2002 |
| Enclosure Rating | IP54 (dust and splash protected) |
| Door Type | Manually operated or motorized sliding doors |
| Interlock Type | Magnetic, fail-safe, hardwired to laser controller |
| Interlock Response Time | ≤ 2 seconds (laser power cutoff) |
| Interior Lighting | LED strip lighting, 24V DC, IP65 rated |
| Extraction Port | 1–4 ports, 150–250mm diameter (customizable) |
| Compliance | CE marking, Machinery Directive 2006/42/EC |
| Custom Dimensions | Built to machine footprint (typical: 3000–8000mm × 2500–4000mm) |
| Control Integration | Schneider Electric safety relay, hardwired interlock circuit |
Application Industries
- Sheet metal fabrication – Safety enclosure for fiber laser cutting machines in shared workshop environments
- Automotive parts manufacturing – CE-compliant guarding for production-line laser cutting cells
- Education & training facilities – Maximum safety for student-accessible laser cutting laboratories
- Job shops & contract manufacturing – Flexible enclosure designs that accommodate multiple machine types and material loading configurations
Manufacturer Backing
Designed and manufactured by Shandong Xinhong CNC Technology Co., Ltd., established in 2005. As a builder of fiber laser cutting machines from 500W to 30000W, Xinhong has deep firsthand understanding of laser safety requirements across different power levels and machine configurations. Each enclosure is engineered to integrate precisely with Xinhong's own laser cutting platforms and can also be customized for third-party machines. Electrical safety systems use Schneider Electric components. The company operates under ISO 9001:2015 quality management certification.
FAQ
Can the enclosure fit my existing laser cutting machine?
Yes. Each enclosure is custom-built to the footprint and configuration of your specific laser cutting machine. Provide us with your machine's external dimensions, table size, loading direction, and any special features (exchange table, shuttle table, conveyor), and we'll design an enclosure that fits precisely.
What laser powers is the enclosure rated for?
The standard laser-safe polycarbonate windows are rated OD 6+ across 900–11000 nm, suitable for all fiber laser cutting machines from 500W to 30000W. For applications involving other laser types (CO2, disk, UV), let us know the wavelength and power so we can verify window compatibility.
How does the door interlock system work?
Magnetic interlock switches are installed on all access doors. When any door opens, the interlock circuit immediately breaks, cutting power to the laser source within 2 seconds. The circuit is fail-safe-any wiring fault, sensor failure, or power loss also results in laser shutdown. The laser cannot restart until all doors are closed and the interlock circuit is verified.
Can the enclosure integrate with my existing fume extraction system?
Yes. The enclosure includes pre-engineered extraction ports that connect to your existing or new fume extraction system via flexible ducting. The enclosure design creates negative pressure inside the cabin, ensuring fume is captured through the extraction ports rather than escaping through door gaps.
Do you provide installation support?
Yes. Enclosures are shipped as pre-fabricated panels with assembly hardware and detailed instructions. For larger installations or integrated systems, we provide on-site installation guidance and commissioning support. The interlock system is pre-wired and tested at the factory for straightforward field connection to your laser machine's safety circuit.
