12000W Fiber Laser Cutting Machine
12000W ultra-high-power fiber laser cutting machine for heavy structural steel - cuts carbon steel up to 35mm, stainless steel up to 20mm. Large 2000x6000mm bed, ±0.05mm precision, IPG/RAYCUS laser source, CE certified.
Get a QuoteProduct Detail

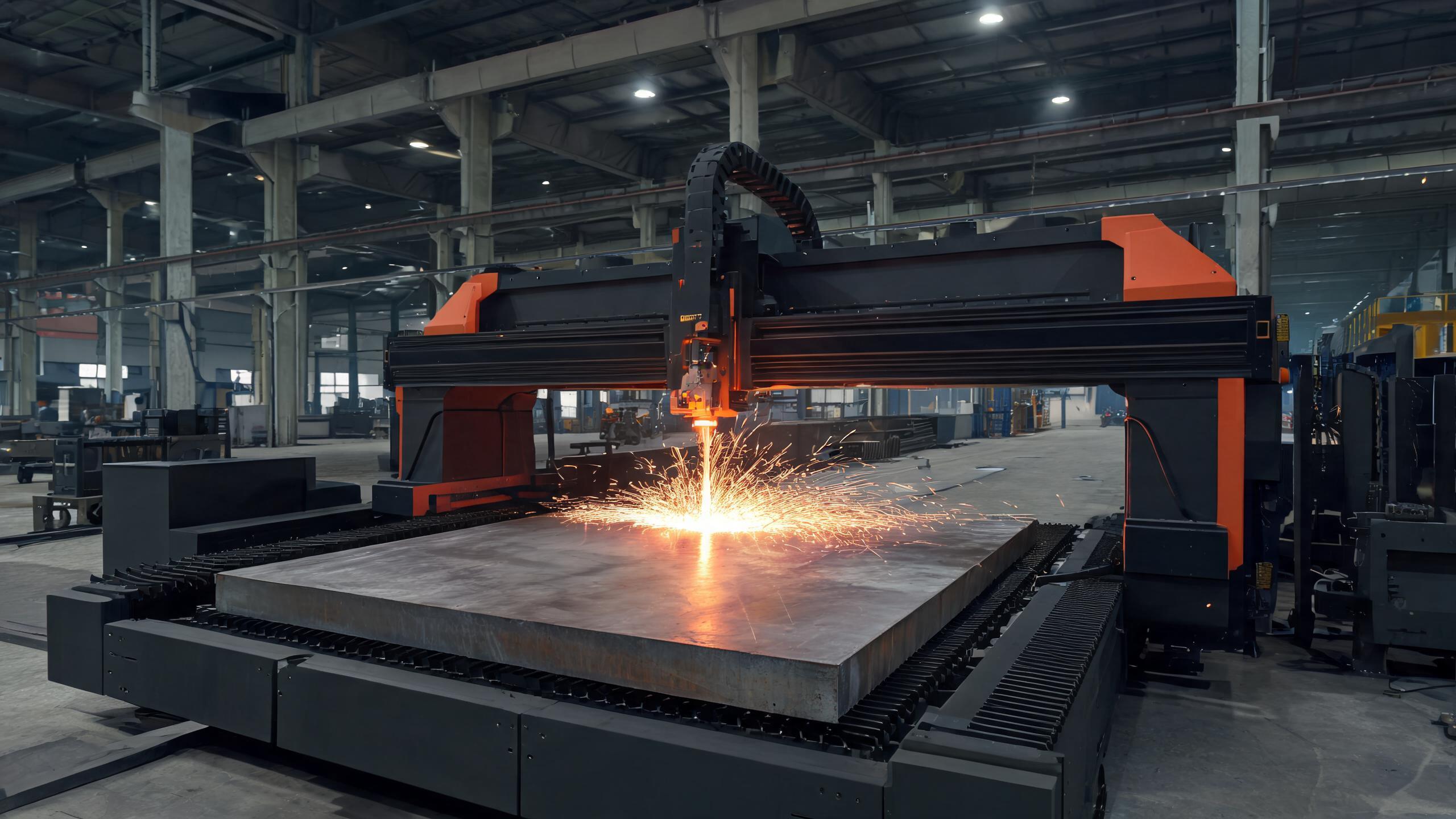

12000W Fiber Laser Cutting Machine
When production demands shift from medium plate to heavy structural steel, 12000W is where fiber laser technology enters true heavy industry territory. The 12000W Fiber Laser Cutting Machine from Shandong Xinhong CNC delivers enough concentrated beam energy to cut carbon steel up to 35mm, stainless steel up to 20mm, and aluminum up to 16mm in a single pass. With a 2000×6000mm extended bed and heavy-duty gantry frame engineered for high-mass plate handling, it replaces plasma and flame cutting for fabricators who need fiber-quality edges on thick stock.
Buyer Pain Points & Solutions
Core Advantages
Technical Specifications
| Parameter | Value |
|---|---|
| Laser Power | 12000W |
| Laser Source | IPG / RAYCUS / GW (optional) |
| Max Cutting Thickness (Carbon Steel) | 35mm |
| Max Cutting Thickness (Stainless Steel) | 20mm |
| Max Cutting Thickness (Aluminum) | 16mm |
| Working Area | 2000 × 6000 mm |
| Positioning Accuracy | ±0.05 mm |
| Repeatability | ±0.03 mm |
| Max Cutting Speed | 30 m/min (depending on material and thickness) |
| Control System | Schneider Modicon M241 PLC |
| Drive System | Dual servo motor + helical rack & pinion |
| Cooling | Dual-temperature industrial water chiller |
| Power Supply | 380V / 50Hz / 3-phase (customizable) |
Application Industries
Manufacturer Backing
Manufactured by Shandong Xinhong CNC Technology Co., Ltd., established in 2005, an ISO 9001:2015-certified and CE-compliant fiber laser equipment manufacturer. With 100-300 employees and a production facility equipped with high-power laser cutting systems from 2000W to 30000W, Xinhong serves automotive, electrical, and sheet metal industries worldwide. The company partners with world-class laser source manufacturers including IPG (USA), RAYCUS, and GW for long-term beam quality and parts availability. Technical documentation, operation manuals, and operator training are provided with every machine. Custom configurations for working area, laser source brand, exchange table, and auxiliary systems are available on request.
FAQ
How does 12000W compare to plasma cutting on thick plates?
The 12000W fiber laser produces narrower kerf, cleaner edges, smaller heat-affected zone, and higher cutting speed than plasma on equivalent thicknesses. It also eliminates the need for secondary grinding or deburring on most applications.
What is the recommended assist gas for different materials?
For carbon steel up to 35mm, oxygen (O2) is typically used for exothermic cutting speed. For stainless steel and aluminum, high-purity nitrogen (≥99.99%) produces bright, oxide-free edges. Xinhong supplies compatible PSA nitrogen generators for integrated operation.
Can the machine handle exchange tables for continuous production?
Yes, an optional exchange table system allows simultaneous loading/unloading while cutting, maximizing machine utilization. Contact us to configure the exchange table option for your production flow.
What nesting and programming software is supported?
The CNC controller supports standard G-code input and is compatible with major nesting software packages. Batch job scheduling enables unattended cutting of multiple programs in sequence.
Is the machine CE certified for European export?
Yes, Xinhong's fiber laser cutting machines are CE certified for European industrial safety compliance, meeting requirements for direct export to European markets.
