30000W Fiber Laser Cutting Machine
30000W maximum power fiber laser cutting machine - the apex of Xinhong's laser platform. Cuts carbon steel up to 70mm, stainless steel up to 40mm, aluminum up to 30mm. 2000x6000mm bed, ±0.05mm precision, IPG/RAYCUS laser source, CE certified.
Get a QuoteProduct Detail
Maximum Power Fiber Laser Cutting · 30000W

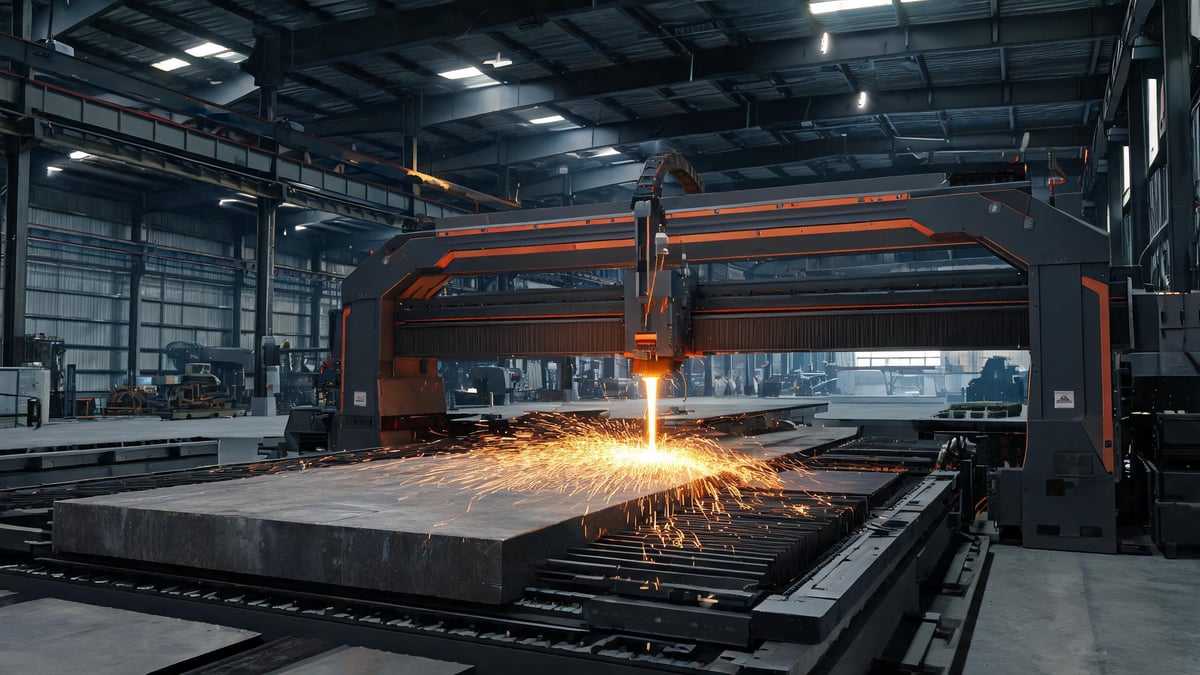

30000W Fiber Laser Cutting Machine
At 30 kilowatts, the 30000W Fiber Laser Cutting Machine is the apex of Xinhong's fiber laser platform - the most powerful cutting system in the product lineup. It cuts carbon steel up to 70mm, stainless steel up to 40mm, and aluminum up to 30mm in a single pass. For steel mills, defense contractors, and heavy industry OEMs that process ultra-thick plates daily, this machine replaces oxy-fuel, plasma, and abrasive waterjet with one fiber laser system that delivers superior edge quality, faster throughput, and lower operating cost across the full thickness spectrum.
30000W
Laser Power
70mm
Max Carbon Steel
±0.05
Positioning Accuracy (mm)
2000×6000
Working Area (mm)
Buyer Pain Points & Solutions
Ultra-thick plate processing: Plates above 50mm carbon steel traditionally require oxy-fuel or waterjet - slow processes with poor edge quality and large heat-affected zones. The 30000W fiber beam cuts 70mm carbon steel with clean, square edges and a fraction of the heat input.
Multi-process replacement: Facilities maintaining separate oxy-fuel, plasma, and machining lines for different thickness ranges can consolidate onto a single 30kW fiber laser. From thin sheet to 70mm plate, one machine handles the full range.
Stainless and aluminum at extreme thickness: Cutting 40mm stainless or 30mm aluminum has been impractical with lower-power lasers. The 30kW beam with high-pressure nitrogen delivers bright, dross-free edges on these challenging materials at thicknesses that were previously waterjet-only territory.
Core Advantages
IPG / RAYCUS 30000W laser source - The maximum power tier in commercial fiber laser technology. 50,000+ hour sealed tube life with beam quality optimized for thick-section cutting stability.
Advanced thermal management system - Triple-circuit industrial water chiller with dedicated cooling for laser, optics, and cutting head, maintaining thermal stability under 30kW continuous operation for production-scale cutting sessions.
High-pressure cutting head (30 bar rated) - Engineered for the gas dynamics of ultra-thick section cutting, with capacitive height sensing, anti-collision protection, and real-time focus tracking.
Reinforced dual-drive gantry - Heavy-section welded steel frame with stress relief, dual servo motors on X-axis with precision helical rack. ±0.05mm positioning accuracy, ±0.03mm repeatability - maintained even on 70mm plate.
Schneider Electric CNC with production management - Modicon M241 PLC, CE and UL certified. Ethernet connectivity for remote monitoring, batch scheduling, nesting integration, and production data logging.
Technical Specifications
Parameter | Value |
|---|---|
Laser Power | 30000W |
Laser Source | IPG / RAYCUS / GW (optional) |
Max Cutting Thickness (Carbon Steel) | 70mm |
Max Cutting Thickness (Stainless Steel) | 40mm |
Max Cutting Thickness (Aluminum) | 30mm |
Max Cutting Thickness (Brass) | 16mm |
Working Area | 2000 × 6000 mm |
Positioning Accuracy | ±0.05 mm |
Repeatability | ±0.03 mm |
Max Cutting Speed | 30 m/min (depending on material and thickness) |
Max Gas Pressure | 30 bar |
Control System | Schneider Modicon M241 PLC |
Drive System | Dual servo motor + helical rack & pinion |
Cooling | Triple-circuit industrial water chiller |
Power Supply | 380V / 50Hz / 3-phase (customizable) |
Application Industries
Steel mills and heavy plate processing · Defense and armor plate manufacturing · Shipbuilding and offshore structures · Nuclear and pressure vessel fabrication · Heavy mining and earthmoving equipment · Oil and gas pipeline and flange · Bridge and infrastructure steel · Wind energy monopile and tower
Manufacturer Backing
Manufactured by Shandong Xinhong CNC Technology Co., Ltd., established in 2005, an ISO 9001:2015-certified and CE-compliant fiber laser equipment manufacturer. Xinhong's production facility is equipped with high-power laser cutting systems from 2000W to 30000W - the 30000W represents the flagship of this lineup. The company partners with world-class laser source manufacturers including IPG (USA), RAYCUS, and GW, ensuring beam quality stability and parts availability at every power tier. Technical documentation, operation manuals, operator training, and commissioning guidance are provided with every machine. Custom configurations for working area, exchange table, laser source brand, gas delivery, and automated material handling are available on request.
FAQ
What makes 30000W different from 20000W for thick plate cutting?
The 30000W extends maximum cutting thickness to 70mm carbon steel (vs 50mm at 20kW) and 40mm stainless steel (vs 30mm at 20kW). It also improves cutting speed and edge quality on thicknesses that are within the 20kW range but near its upper limit, reducing dross and taper.
What facility infrastructure is required for a 30000W machine?
The machine requires 380V/3-phase electrical supply, a triple-circuit water chiller (included), and adequate compressed air and assist gas supply (N2 or O2). Full facility requirements are detailed in the technical documentation provided with the machine. Xinhong offers installation guidance.
Can the machine cut armor steel and high-hardness materials?
Yes, the 30000W beam can process high-hardness armor steel and wear-resistant plate (e.g., Hardox) at thicknesses that exceed lower-power laser capabilities. Contact us with your specific material grade and thickness for a capability assessment.
Is an exchange table available for continuous production?
Yes, exchange table systems can be integrated to allow simultaneous cutting and loading/unloading, maximizing machine utilization for high-volume production. Contact us to configure the system for your workflow.
What after-sales support and training are included?
Every machine includes technical documentation, operation manuals, remote troubleshooting, and operator training. Xinhong provides installation guidance and commissioning support. Spare parts and consumables are available directly from Xinhong. Contact us for service terms in your region.
