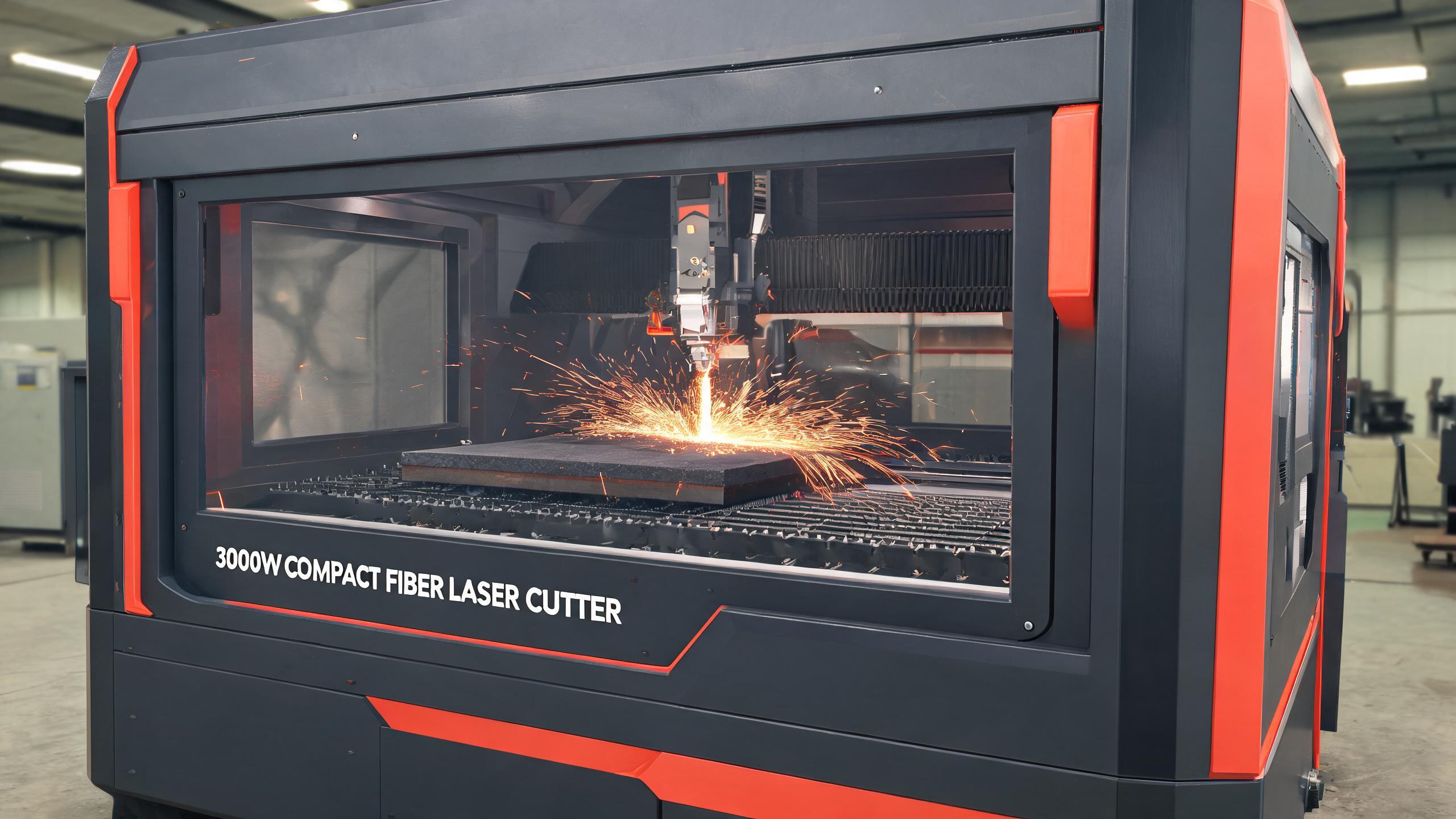

3000W Compact Fiber Laser Cutting Machine
3000W compact fiber laser cutting machine with fully enclosed safety canopy. Cuts carbon steel to 12mm, stainless steel to 8mm, aluminum to 6mm. 1500x3000mm working area, exchange table, integrated fume extraction, CE-compliant. Ideal for space-conscious fabricators needing high cutting power.
Get a QuoteProduct Detail
Compact High-Performance Fiber Laser Cutting Machine
3000W Compact Fiber Laser Cutting Machine
Buyer Challenges & Solutions
Many fabrication shops need the cutting power of a 3000W laser but are constrained by floor space and budget. Full-size 3000W machines are large, expensive, and often require extensive facility modifications. The 3000W compact fiber laser cutting machine addresses this by delivering full 3000W cutting capability in a space-efficient enclosed design that fits in workshops where standard machines cannot.
The fully enclosed safety canopy with interlocked doors also addresses a critical concern for European buyers: operator safety and CE compliance. The enclosed design contains laser radiation, fumes, and sparks, making it suitable for facilities with strict workplace safety regulations without requiring a separate laser safety enclosure.
Product Description
The Xinhong 3000W compact fiber laser cutting machine combines high cutting power with a compact footprint. Powered by a 3000W IPG/RAYCUS fiber laser source, it cuts carbon steel up to 12mm, stainless steel to 8mm, and aluminum to 6mm. The fully enclosed design features interlocked safety doors, integrated fume extraction, and a Schneider Electric control system with CypCut nesting software. The exchange table enables continuous production while the enclosed canopy ensures operator safety and environmental compliance.
Technical Specifications
| Parameter | Value |
|---|---|
| Laser Power | 3000W |
| Laser Source | IPG / RAYCUS / GW |
| Working Area | 1500 × 3000 mm |
| Max Cutting Speed | 40 m/min (dependent on material & thickness) |
| Cutting Precision | ±0.03 mm |
| Repeatability | ±0.02 mm |
| Max Cutting Thickness - Carbon Steel | 12 mm |
| Max Cutting Thickness - Stainless Steel | 8 mm |
| Max Cutting Thickness - Aluminum | 6 mm |
| Control System | Schneider Electric PLC + CypCut software |
| Enclosure Type | Fully enclosed with interlocked safety doors |
| Fume Extraction | Integrated downdraft extraction system |
| Cooling System | Industrial water chiller (dual temperature) |
| Power Supply | 380V, 3-phase, 50/60Hz |
| Exchange Table | Standard (auto shuttle) |
| Machine Dimension | 3600 × 2400 × 2000 mm (approx.) |
Key Features
Interlocked safety doors and enclosed canopy contain laser radiation, fumes, and sparks - meeting European CE workplace safety requirements without a separate enclosure.
Integrated downdraft fume extraction system removes cutting smoke and particles directly from the cutting zone, protecting operator health and maintaining clean air quality.
Designed to deliver 3000W cutting power in a smaller machine envelope. Saves 15-20% floor space compared to standard open-frame 3000W machines.
Automatic shuttle exchange table enables simultaneous cutting and sheet loading, maximizing machine utilization and reducing idle time.
Electrical control system built with Schneider Electric components (Modicon M241 PLC) for CE/UL compliance, Ethernet connectivity, and reliable operation.
Why Choose Xinhong
- Established manufacturer since 2005 - Shandong Xinhong CNC Technology Co., Ltd. has nearly two decades of experience building fiber laser equipment for global markets.
- World-class laser sources - We use fiber laser sources from IPG (USA), RAYCUS, and GW with 35,000+ hour service life and consistent beam quality.
- CE-compliant safety design - The enclosed canopy with interlocked doors meets European laser safety standards, making this model ideal for EU buyers.
- Schneider Electric partnership - Control systems built with CE/UL-certified Schneider Electric components for safety and reliability.
- Comprehensive after-sales support - Remote diagnostics, spare parts supply, and installation guidance for international customers.
Applications
The 3000W compact fiber laser cutting machine is widely used in:
- Sheet metal fabrication (1-12mm carbon steel)
- Stainless steel processing for food-grade equipment
- Automotive and trailer component manufacturing
- Structural steel and angle iron cutting
- Electrical cabinet and enclosure production
- Agricultural machinery parts fabrication
FAQ
How does the compact model differ from the standard 3000W machine?
The compact model features a fully enclosed safety canopy and a 15-20% smaller footprint compared to our standard open-frame 3000W machine. The cutting area, laser power, and specifications remain the same - the difference is in the enclosure design and machine dimensions.
Does the enclosed design meet CE safety requirements?
Yes. The enclosed canopy with interlocked safety doors contains laser radiation and is designed to meet European CE laser safety standards. This eliminates the need for a separate laser safety enclosure in your facility.
What is the maximum cutting thickness for different materials?
The 3000W laser cuts carbon steel up to 12mm, stainless steel up to 8mm, and aluminum up to 6mm. Cutting speed and edge quality vary with material type, thickness, and assist gas selection.
Is the fume extraction system included or optional?
The integrated downdraft fume extraction system is included as standard on the compact enclosed model. It connects to your facility's exhaust ducting or an optional external dust collector.
Can I use nitrogen for oxide-free cutting?
Yes. The machine supports air, oxygen, and nitrogen assist gas. For oxide-free edges on stainless steel and aluminum, nitrogen or high-purity air is recommended. An optional PSA nitrogen generator is available for on-site nitrogen production.
