Shandong Xinhong CNC Technology Co., Ltd
1500W Fiber Laser Cutting Machine
1500W fiber laser cutting machine for small to medium fabricators. Cuts carbon steel to 6mm, aluminum to 4mm, copper to 3mm with ±0.03mm accuracy. 1300x2500mm bed, water-cooled, CE/RoHS compliant for European export.
Highlights
- Cuts carbon steel to 6mm, aluminum to 4mm, copper alloys to 3mm
- Compact 1300 x 2500mm work surface fits small shop layouts
- Water-cooled tube for 40000+ hour service life
- Automatic edge detection optimizes cut parameters per material
- Real-time feed rate adjustment for consistent cut edges
- CE and RoHS certified for European market compliance
- CNC controller with job memory for repeat cutting patterns
Specifications
| Laser Power | 1500W |
|---|---|
| Max Cutting Thickness | Carbon Steel 6mm, Aluminum 4mm, Copper 3mm |
| Working Area | 1300 x 2500 mm |
| Accuracy | +/- 0.03 mm |
| Cooling Type | Water Cooled |
| Certifications | CE / RoHS Compliant |
Product Detail
1500W Fiber Laser Cutting Machine
For small job shops and fabricators stepping up from manual cutting or entry-level lasers, the 1500W Fiber Laser Cutting Machine from Shandong Xinhong CNC offers a practical balance of cutting capacity and cost. It handles carbon steel up to 6mm, aluminum up to 4mm, and copper alloys up to 3mm with ±0.03mm accuracy across a 1300×2500mm bed. The water-cooled fiber tube runs 40,000+ hours under continuous production load, and the integrated CNC controller with automatic edge detection adapts feed rates in real time to maintain cut quality across material variations.
Buyer Pain Points & Solutions
Core Advantages
Technical Specifications
| Parameter | Value |
|---|---|
| Laser Power | 1500W |
| Laser Source | IPG / RAYCUS / GW (optional) |
| Max Cutting Thickness (Carbon Steel) | 6mm |
| Max Cutting Thickness (Aluminum) | 4mm |
| Max Cutting Thickness (Copper Alloys) | 3mm |
| Working Area | 1300 × 2500 mm |
| Positioning Accuracy | ±0.03 mm |
| Cooling Type | Water Cooled |
| Tube Lifespan | 40,000+ hours |
| Control System | CNC controller with automatic edge detection |
| Certifications | CE / RoHS Compliant |
Application Industries
Manufacturer Backing
Manufactured by Shandong Xinhong CNC Technology Co., Ltd., an ISO 9001:2015-certified and CE-compliant fiber laser equipment manufacturer. Xinhong's product line spans 1000W to 30000W fiber laser cutting systems, welding machines, and auxiliary equipment. The company partners with IPG (USA), RAYCUS, and GW for laser sources, ensuring parts availability and beam quality consistency. Technical documentation, operation manuals, and operator training are provided with every machine. Custom configurations for bed size, laser source brand, and auxiliary systems are available on request.
FAQ
What materials can the 1500W machine cut?
Carbon steel up to 6mm, aluminum up to 4mm, and copper alloys up to 3mm. The system also handles stainless steel, galvanized plate, and other common sheet metals within the thickness range. For thicker materials, consider our 3000W or 6000W models.
How does the automatic edge detection work?
The system scans the material sheet upon loading, detects the actual edge position, and aligns the cutting program to the real material boundaries. This eliminates misalignment from manually positioned sheets and reduces material waste on the first cut.
What is the advantage of water cooling over air cooling?
Water cooling maintains a more stable tube temperature during continuous operation, preventing the output power drift that occurs in air-cooled systems after extended use. This results in more consistent cut quality and longer tube life (40,000+ hours vs. typically 20,000-30,000 for air-cooled).
Does the machine come with CE and RoHS documentation?
Yes. Full CE and RoHS compliance documentation is included with every machine, meeting European industrial safety and environmental standards for direct export to European OEM buyers.

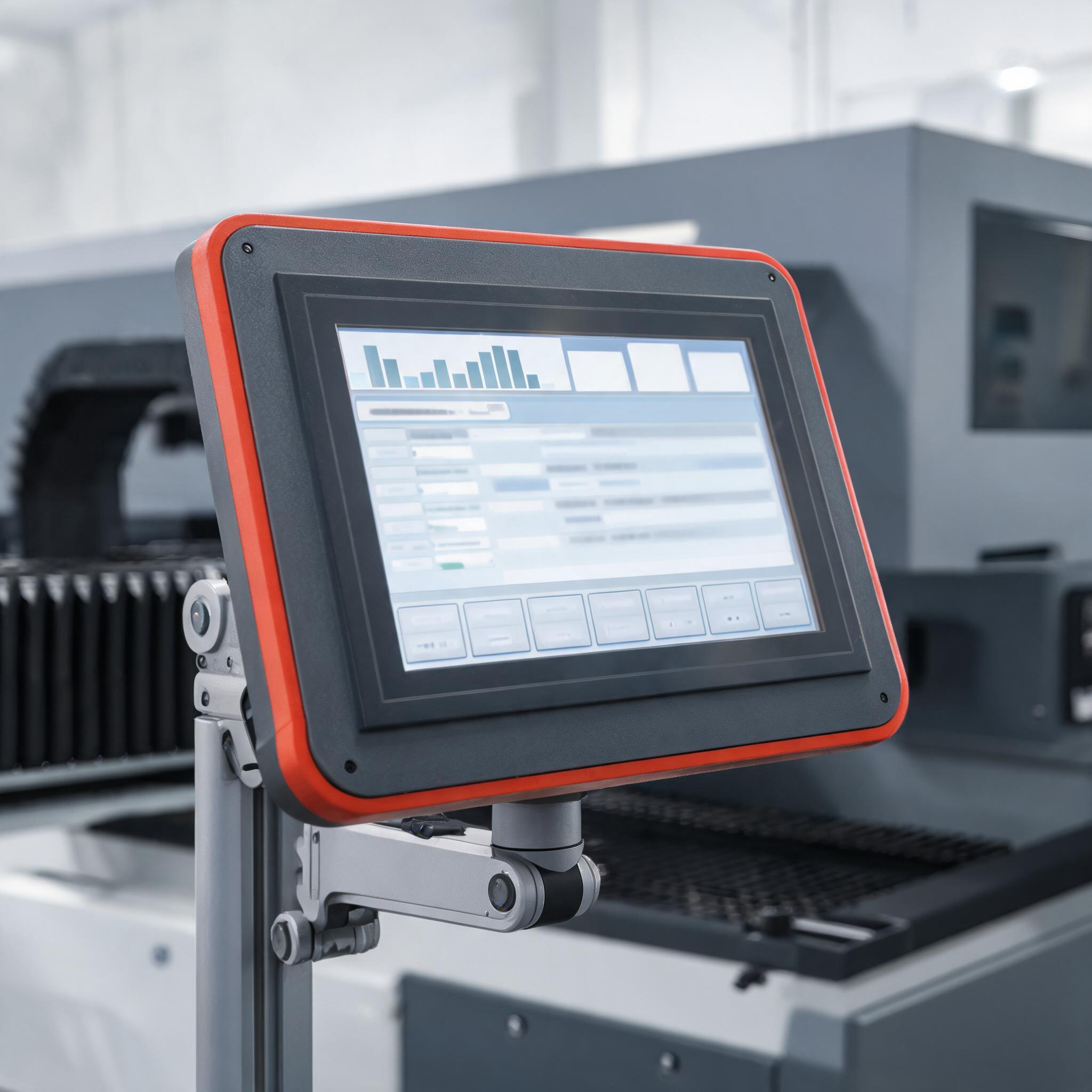

Can the CNC controller store multiple cutting programs?
Yes. The controller stores and recalls cutting programs for repeat orders, and supports batch job scheduling so operators can queue multiple programs for sequential unattended cutting.
