1500W Handheld Fiber Laser Welder
Handheld 1500W fiber laser welder for stainless steel, aluminum, and titanium alloys. 3mm max penetration, ±0.1mm bead consistency, water-cooled, stores 50+ weld profiles. CE/RoHS certified.
Highlights
- Handheld scanning head for accessible joint positioning
- 3mm maximum penetration in stainless steel and aluminum
- Minimal heat distortion compared to arc welding methods
- Bead consistency of ±0.1mm for cosmetic and structural welds
- Water circulation cooling for extended 8+ hour operation
- Memory storage for 50+ weld profiles and parameters
- CE and RoHS certified for full European market compliance
Specifications
| Welding Power | 1500W |
|---|---|
| Max Penetration | 3 mm |
| Bead Consistency | +/- 0.1 mm |
| Compatible Materials | Stainless Steel, Aluminum, Titanium Alloys |
| Cooling System | Water Circulation Cooled |
| Certifications | CE / RoHS Certified |
Product Detail

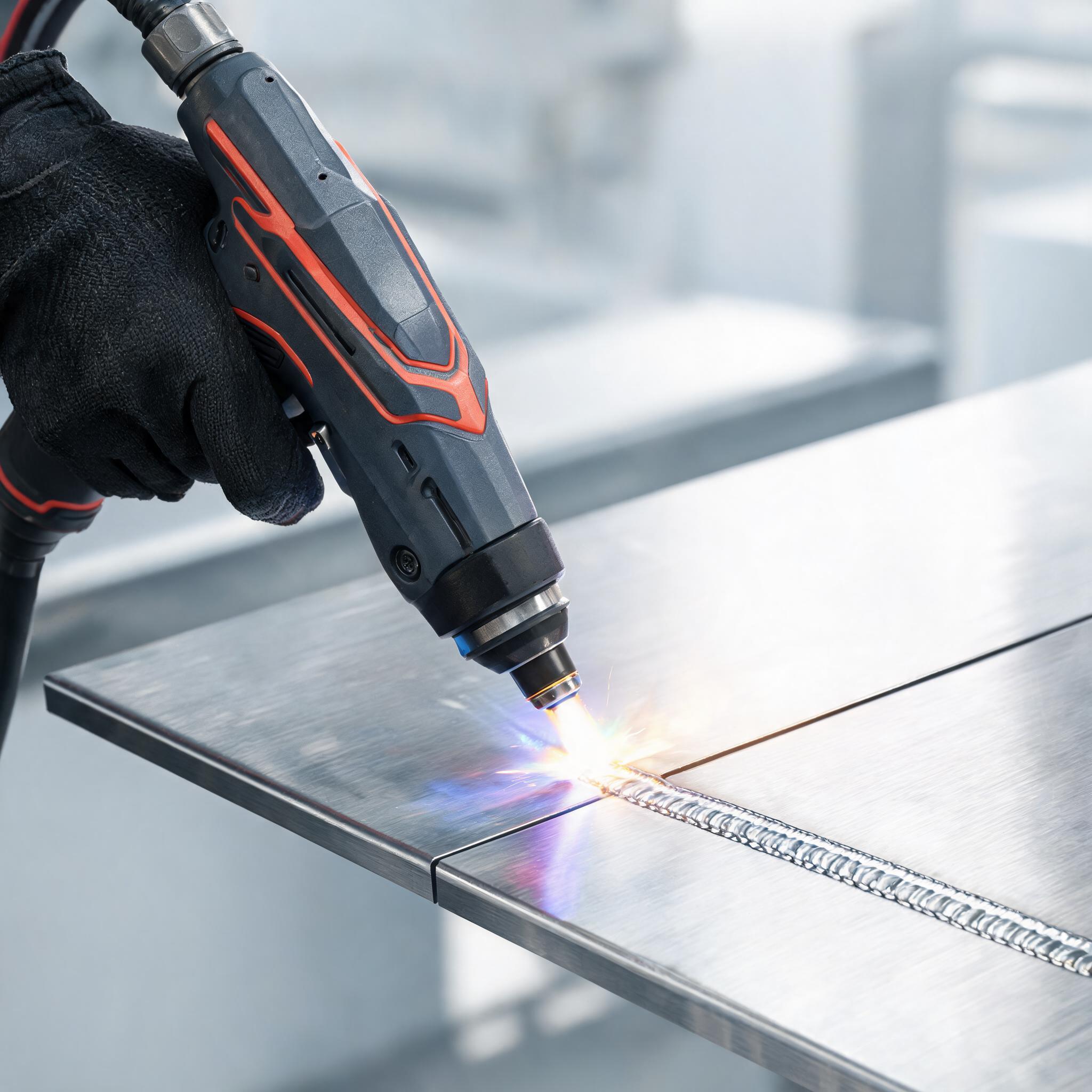

1500W Handheld Fiber Laser Welder
The 1500W Handheld Fiber Laser Welder from Shandong Xinhong CNC gives fabricators the precision of fiber laser welding in a portable, operator-friendly format. The handheld scanning head achieves 3mm maximum penetration in stainless steel and aluminum alloys with ±0.1mm bead consistency - tight enough for both cosmetic surface welds and structural joints in a single pass. Water circulation cooling sustains safe operating temperature through 8+ hour production shifts, and the digital parameter memory stores 50+ weld profiles for instant job changeovers. Compared to traditional arc welding, the fiber laser produces minimal heat distortion and a narrow heat-affected zone, which is critical for thin-gauge sheet metal and precision assemblies.
Buyer Pain Points & Solutions
Core Advantages
Technical Specifications
| Parameter | Value |
|---|---|
| Welding Power | 1500W |
| Laser Type | Fiber laser (IPG / RAYCUS / GW optional) |
| Max Penetration Depth | 3mm (stainless steel and aluminum alloys) |
| Bead Consistency | ±0.1mm |
| Compatible Materials | Stainless Steel, Aluminum, Titanium Alloys |
| Cooling System | Water Circulation Cooled |
| Continuous Operation | 8+ hour production shifts |
| Weld Profile Memory | 50+ stored profiles |
| Welding Head | Handheld scanning head with ergonomic grip |
| Certifications | CE / RoHS Certified |
Application Industries
Manufacturer Backing
Manufactured by Shandong Xinhong CNC Technology Co., Ltd., an ISO 9001:2015-certified and CE-compliant fiber laser equipment manufacturer. Xinhong's product line spans fiber laser cutting systems (1000W-30000W), welding machines, and auxiliary equipment. The company partners with IPG (USA), RAYCUS, and GW for laser sources. Technical documentation, CE certification documentation, RoHS compliance testing reports, operation manuals, and operator training are provided with every machine.
FAQ
What materials can the 1500W welder handle?
Stainless steel, aluminum alloys, and titanium alloys up to 3mm penetration depth. The system is suitable for both same-material and dissimilar-material welding within the compatible range. For thicker materials, consider our 2000W model with 5mm penetration capability.
How does fiber laser welding compare to TIG/MIG welding?
Fiber laser welding produces a narrower heat-affected zone, less distortion, faster welding speed, and a cleaner weld bead with minimal spatter. It requires no filler wire for many applications and produces visually clean welds that often need no grinding. However, it requires more precise joint fit-up than arc welding.
How does the weld profile memory work?
The digital controller stores up to 50+ parameter sets, each containing power level, scanning speed, pulse frequency, and waveform settings for a specific material and thickness combination. Operators recall the correct profile by number, eliminating manual parameter setup between different jobs.
What is included with the machine for European buyers?
European buyers receive CE certification documentation, RoHS compliance testing reports, operation manuals, and operator training. The machine meets European industrial safety and environmental standards for direct export and operation in EU facilities.
Can the handheld welder be used for continuous production?
Yes. The water circulation cooling system maintains safe operating temperature for 8+ hour production shifts. The ergonomic grip design reduces operator fatigue during extended use, making it suitable for batch production environments.
