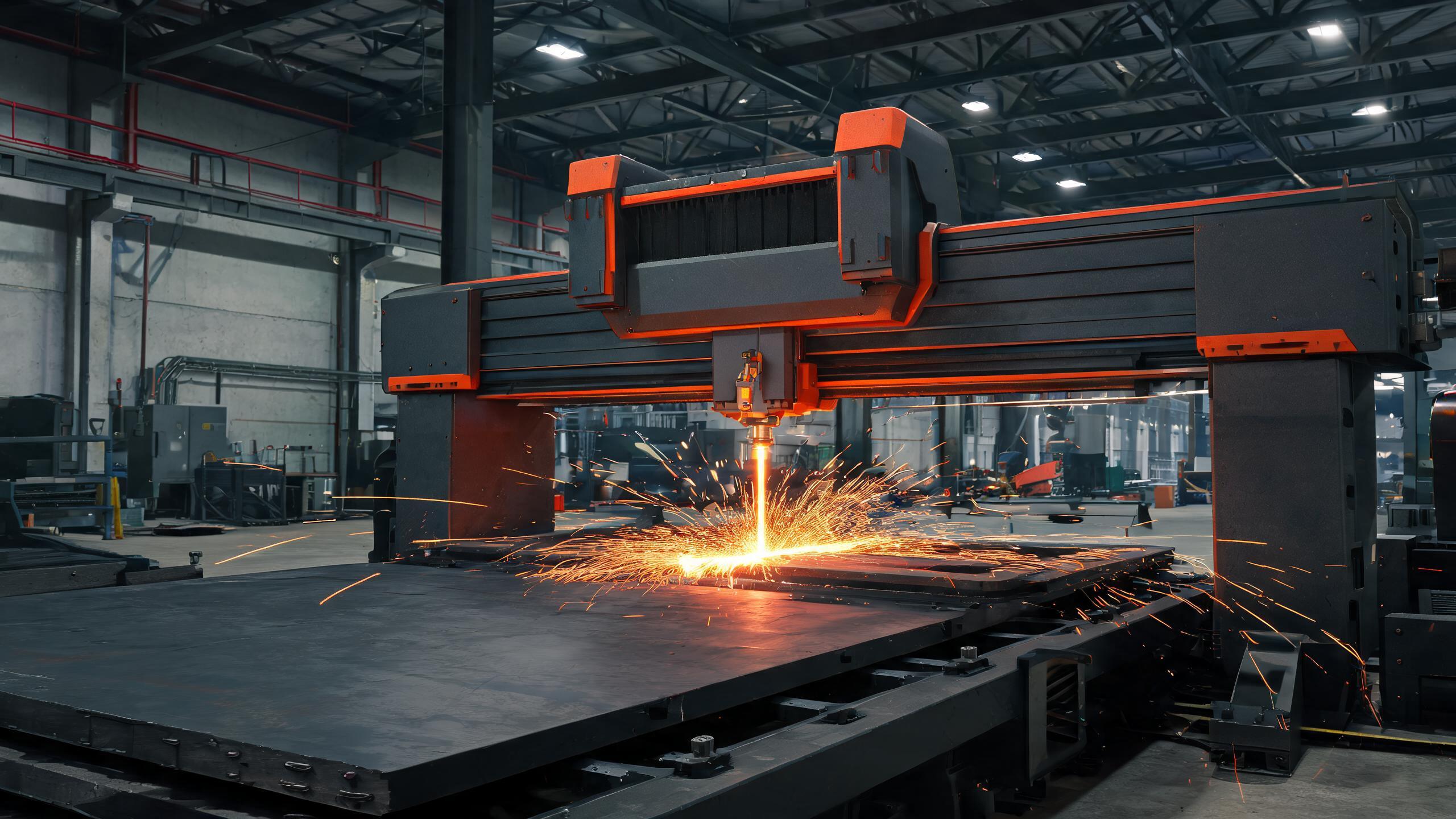

20000W Fiber Laser Cutting Machine
The 20000W Fiber Laser Cutting Machine represents the frontier of industrial fiber laser capability. At 20 kilowatts of continuous beam power, it cuts carbon steel up to 50mm, stainless steel up to 30mm, and aluminum up to 25mm in a single pass - thicknesses that previously required oxy-fuel or abrasive waterjet cutting. For steel service centers, heavy equipment manufacturers, and defense contractors, this machine consolidates multiple cutting processes into one fiber laser platform, delivering precision edges at thicknesses once thought impossible for laser technology.
Buyer Pain Points & Solutions
Core Advantages
Technical Specifications
| Parameter | Value |
|---|---|
| Laser Power | 20000W |
| Laser Source | IPG / RAYCUS / GW (optional) |
| Max Cutting Thickness (Carbon Steel) | 50mm |
| Max Cutting Thickness (Stainless Steel) | 30mm |
| Max Cutting Thickness (Aluminum) | 25mm |
| Max Cutting Thickness (Brass) | 12mm |
| Working Area | 2000 × 6000 mm |
| Positioning Accuracy | ±0.05 mm |
| Repeatability | ±0.03 mm |
| Max Cutting Speed | 30 m/min (depending on material and thickness) |
| Max Gas Pressure | 25 bar |
| Control System | Schneider Modicon M241 PLC |
| Drive System | Dual servo motor + helical rack & pinion |
| Cooling | Dual-circuit industrial water chiller |
| Power Supply | 380V / 50Hz / 3-phase (customizable) |
Application Industries
Manufacturer Backing
Manufactured by Shandong Xinhong CNC Technology Co., Ltd., established in 2005, an ISO 9001:2015-certified and CE-compliant fiber laser equipment manufacturer. Xinhong's production facility is equipped with high-power laser cutting systems from 2000W to 30000W, serving automotive, electrical, and heavy industry sectors worldwide. The company partners with world-class laser source manufacturers including IPG (USA), RAYCUS, and GW, ensuring beam quality stability and long-term parts availability even at the 20kW power tier. Every machine includes technical documentation, operation manuals, and operator training. Custom configurations for working area, exchange table, laser source brand, and gas delivery systems are available on request.
FAQ
What thicknesses can the 20000W machine cut that lower-power models cannot?
The 20000W extends cutting capability to 50mm carbon steel, 30mm stainless steel, and 25mm aluminum - thicknesses that exceed the practical limits of 12kW and even 15kW systems. This eliminates the need for oxy-fuel or waterjet for most thick-plate applications.
Is the 20000W machine suitable for processing reflective metals like aluminum and brass?
Yes. The 20kW fiber laser with high-purity nitrogen assist gas effectively cuts aluminum up to 25mm and brass up to 12mm. The advanced cutting head includes anti-reflection protection for safe processing of reflective materials.
What cooling infrastructure is required?
The machine uses a dual-circuit industrial water chiller with separate cooling loops for the laser source and optics. The chiller is included with the machine. Facility requirements include adequate electrical supply (380V/3-phase) and cooling water infrastructure - details provided in the technical documentation.
Can the machine be integrated with exchange tables and automated material handling?
Yes, exchange table systems and automated loading/unloading can be integrated. Contact us with your production layout and throughput requirements for a customized configuration.
What support is available for installation and training?
Technical documentation, operation manuals, remote troubleshooting, and operator training are included. Xinhong provides installation guidance and commissioning support. Contact us for service terms specific to your region.
