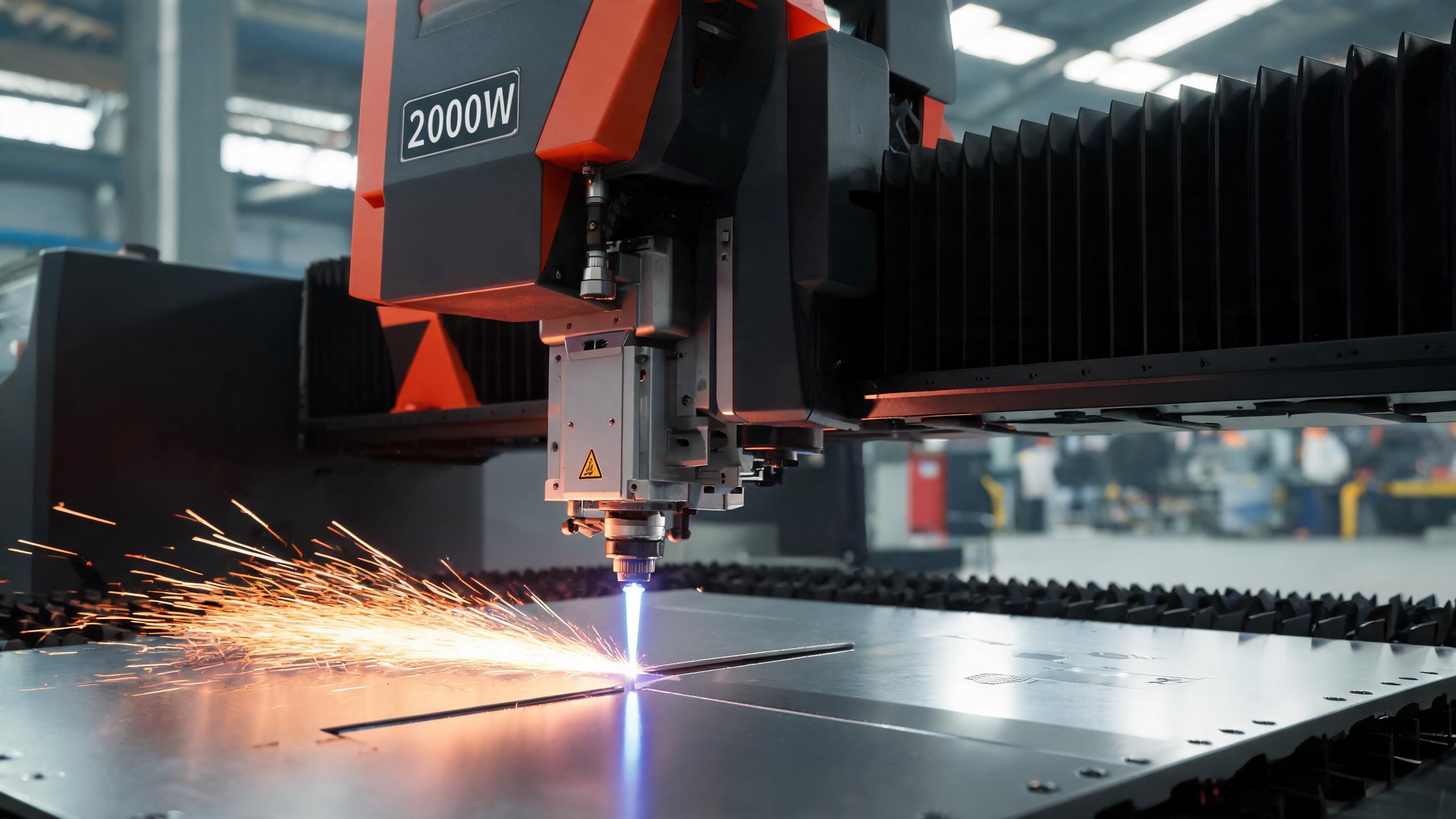

2000W Fiber Laser Cutting Machine
2000W medium-power fiber laser cutting machine for carbon steel up to 8mm, stainless steel to 5mm, and aluminum to 4mm. Features 1500×3000mm working area, IPG/RAYCUS laser source, Schneider Electric control system, and exchange table for continuous production. Ideal for sheet metal fabrication, automotive parts, and advertising signage.
Get a QuoteProduct Detail
Medium-Power Fiber Laser Cutting Machine
2000W Fiber Laser Cutting Machine
Buyer Challenges & Solutions
Sheet metal fabricators and job shops often struggle to find a cutting machine that balances cutting capacity with operating cost. Too low a power and you cannot process thicker plates; too high and the investment and electricity costs eat into your margins. The 2000W fiber laser cutting machine fills this gap—delivering enough power to cut carbon steel up to 8mm and stainless steel to 5mm, while keeping energy consumption and maintenance costs at a fraction of high-power alternatives.
For workshops transitioning from CO2 or plasma cutting, the 2000W fiber laser offers faster cutting speeds, narrower kerf widths, and significantly lower heat-affected zones, reducing or eliminating secondary finishing operations.
Product Description
The Xinhong 2000W fiber laser cutting machine is engineered for medium-duty sheet metal processing. Powered by a 2000W IPG/RAYCUS fiber laser source with 35,000+ hour service life, it delivers high beam quality and stable cutting performance across carbon steel, stainless steel, aluminum, brass, and copper. The machine features a 1500×3000mm working area suitable for standard sheet sizes, an exchange table for continuous loading/unloading during cutting, and a Schneider Electric control system with CypCut nesting software for efficient material utilization.
Technical Specifications
| Parameter | Value |
|---|---|
| Laser Power | 2000W |
| Laser Source | IPG / RAYCUS / GW |
| Working Area | 1500 × 3000 mm |
| Max Cutting Speed | 35 m/min (dependent on material & thickness) |
| Cutting Precision | ±0.03 mm |
| Repeatability | ±0.02 mm |
| Max Cutting Thickness — Carbon Steel | 8 mm |
| Max Cutting Thickness — Stainless Steel | 5 mm |
| Max Cutting Thickness — Aluminum | 4 mm |
| Control System | Schneider Electric PLC + CypCut software |
| Laser Wavelength | 1080 nm |
| Cooling System | Industrial water chiller (dual temperature) |
| Power Supply | 380V, 3-phase, 50/60Hz |
| Exchange Table | Standard (auto shuttle) |
| Machine Dimension | 3400 × 2300 × 1800 mm (approx.) |
Key Features
Automatic shuttle table enables simultaneous cutting and material loading, reducing idle time and boosting throughput by up to 40%.
Automatic focus adjustment system maintains optimal beam quality across different material thicknesses without manual recalibration.
Integrated CypCut CAM software auto-nests parts to maximize sheet material utilization, reducing scrap and lowering per-part cost.
Electrical control system built with Schneider Electric components (Modicon M241 PLC) for CE/UL compliance and reliable operation.
Adjustable air/N₂/O₂ assist gas system ensures clean edge quality with minimal oxidation across different material types.
Why Choose Xinhong
- Established manufacturer since 2005 — Shandong Xinhong CNC Technology Co., Ltd. has nearly two decades of experience in fiber laser equipment R&D and production.
- World-class laser sources — We use fiber laser sources from IPG (USA), RAYCUS, and GW, ensuring beam quality and 35,000+ hour service life.
- CE-compliant electrical systems — Schneider Electric control components meet European safety and quality standards.
- Customizable configurations — Optional nitrogen generator integration, dual-platform tables, and tube cutting attachments available.
- Global service network — Remote technical support, installation guidance, and spare parts supply for international customers.
Applications
The 2000W fiber laser cutting machine is widely used in:
- Sheet metal fabrication and enclosure manufacturing
- Automotive components and chassis parts
- Advertising signage and decorative metalwork
- Kitchen equipment and appliances
- Electrical cabinets and control panel enclosures
- Elevator components and architectural metal
FAQ
What materials can the 2000W fiber laser cut?
The 2000W fiber laser can cut carbon steel up to 8mm, stainless steel up to 5mm, aluminum up to 4mm, and brass/copper up to 3mm. Cutting capacity varies based on material type, surface quality, and assist gas used.
Does the machine come with a warranty?
Yes. The machine includes a standard warranty covering the laser source, control system, and mechanical components. Extended warranty options are available — contact our sales team for details.
Can I upgrade the laser power later?
The machine frame and gantry are designed to accommodate higher laser powers (up to 3000W) should your production needs grow. Laser source upgrade requires factory recalibration and is supported by our technical team.
What assist gases are required?
Compressed air is standard for thin sheet cutting. Oxygen is recommended for thick carbon steel, and nitrogen or high-purity air is used for stainless steel and aluminum to achieve oxide-free edges. An optional PSA nitrogen generator is available.
Do you provide installation and training?
Yes. We provide remote installation guidance, video tutorials, and operation manuals. On-site installation and training can be arranged for an additional service fee. Contact us to discuss your specific requirements.
Ready to Boost Your Cutting Efficiency?
Get a customized quote for the 2000W fiber laser cutting machine. Tell us your material types, thickness range, and production volume — we'll recommend the optimal configuration.
Request a Quote
