Shandong Xinhong CNC Technology Co., Ltd
2000W Industrial Fiber Laser Welder
Industrial 2000W fiber laser welder with fixed scanning head and robotic arm integration. 5mm penetration in stainless steel, 4mm in aluminum. Dual-mode CW/pulsed, vision system with laser crosshair. CE certified.
Highlights
- 5mm penetration in stainless steel and 4mm in aluminum alloys
- Dual-mode continuous wave and pulsed welding parameters
- Robotic arm integration for automated high-volume production
- Vision system with laser crosshair for precise joint targeting
- Weld speed range of 0.5-2.0mm per second
- Minimal spatter and small heat-affected zone for part integrity
- Regional technical support and spare parts availability across Europe
Specifications
| Welding Power | 2000W |
|---|---|
| Max Penetration | Stainless Steel 5mm, Aluminum 4mm |
| Weld Speed | 0.5-2.0 mm/s |
| Operating Modes | Continuous Wave / Pulsed |
| Robotic Integration | Compatible with Standard Arms |
| Vision System | Laser Alignment + Crosshair Display |
Product Detail
2000W Industrial Fiber Laser Welder
The 2000W Industrial Fiber Laser Welder from Shandong Xinhong CNC is engineered for high-volume automated welding lines where repeatability and throughput matter. The fixed scanning head design integrates with standard robotic arms for automated welding of repetitive production runs. It achieves 5mm penetration in stainless steel and 4mm in aluminum alloys with minimal spatter and a small heat-affected zone. Dual-mode operation supports both continuous wave and pulsed welding parameters, allowing operators to optimize joint quality for thin-to-thick material transitions. The integrated vision system with laser alignment crosshair ensures precise joint positioning before each weld initiation.
Buyer Pain Points & Solutions
Core Advantages
Technical Specifications
| Parameter | Value |
|---|---|
| Welding Power | 2000W |
| Laser Type | Fiber laser (IPG / RAYCUS / GW optional) |
| Max Penetration (Stainless Steel) | 5mm |
| Max Penetration (Aluminum Alloys) | 4mm |
| Operating Modes | Continuous Wave / Pulsed |
| Weld Speed Range | 0.5 – 2.0 mm/s |
| Welding Head | Fixed scanning head |
| Robotic Integration | Compatible with standard industrial robotic arms |
| Vision System | Camera + laser alignment crosshair |
| Certifications | CE Certified |
Application Industries
Manufacturer Backing
Manufactured by Shandong Xinhong CNC Technology Co., Ltd., an ISO 9001:2015-certified and CE-compliant fiber laser equipment manufacturer. Xinhong's product line spans fiber laser cutting systems (1000W-30000W), welding machines, and auxiliary equipment. The company partners with IPG (USA), RAYCUS, and GW for laser sources. European OEM buyers receive full technical documentation, spare parts availability, and on-site commissioning support. Custom configurations for welding head type, robotic integration, and auxiliary systems are available on request.
FAQ
What is the difference between continuous wave and pulsed welding modes?
Continuous wave (CW) mode delivers constant laser power for deep penetration on thicker materials. Pulsed mode alternates between high and low power, reducing total heat input for thin materials and heat-sensitive components. The dual-mode system lets you switch within the same welding program for parts with mixed thickness requirements.
Which robotic arms are compatible with the fixed welding head?
The fixed scanning head is designed for integration with standard industrial robotic arms using common mounting interfaces. Contact us with your robot brand and model to confirm compatibility and discuss integration requirements.
How does the vision system with laser crosshair work?

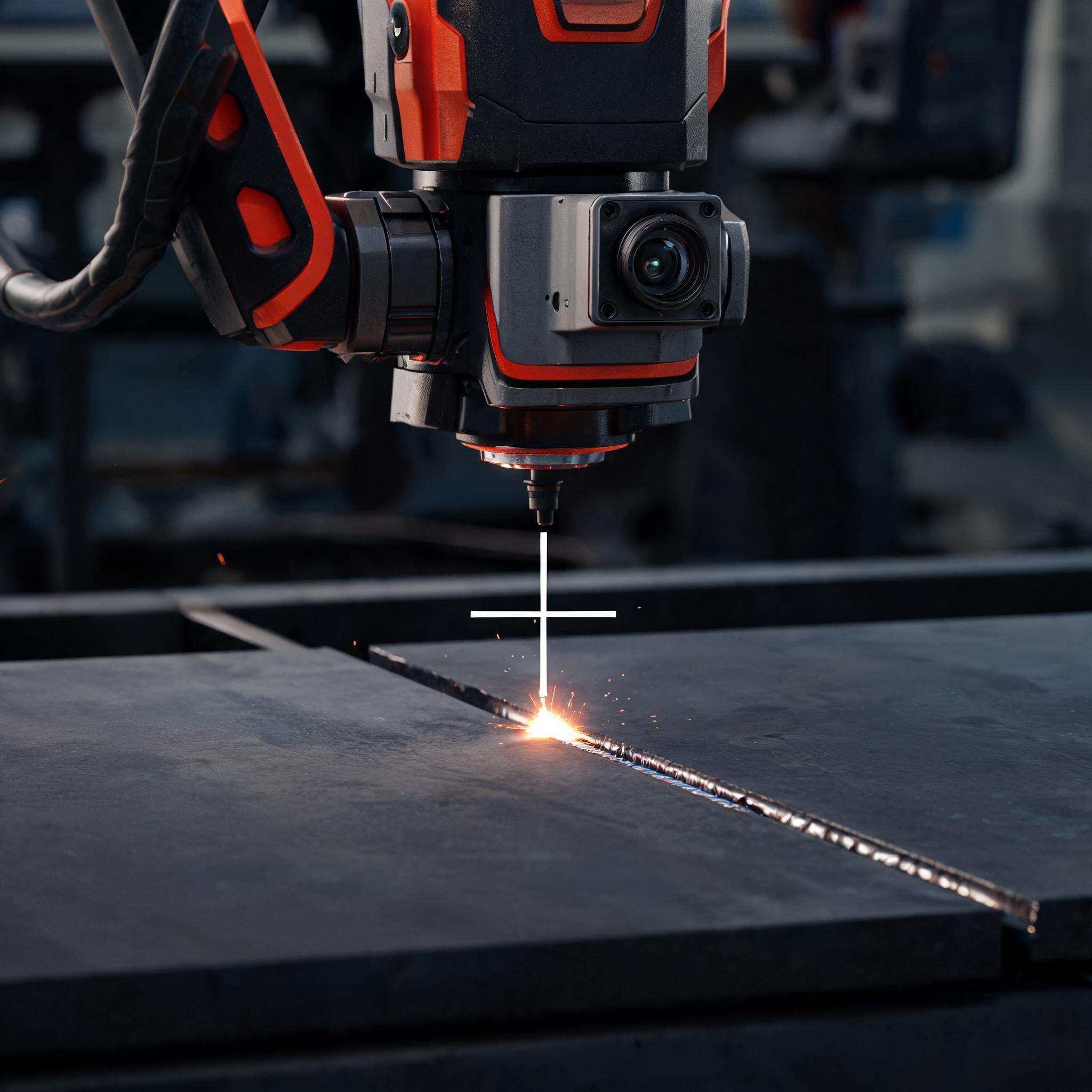

A camera mounted on the welding head provides real-time video of the joint area. A laser projects a crosshair onto the workpiece at the exact weld target position. The operator or robotic controller verifies alignment before weld initiation, reducing defects from mispositioned joints.
What materials and thicknesses can the 2000W welder handle?
Stainless steel up to 5mm and aluminum alloys up to 4mm penetration. The system is also suitable for other metals including titanium and copper alloys within reduced thickness ranges. Welding speed adjusts based on material type and thickness.
What support is provided for European OEM buyers?
European buyers receive full technical documentation, CE certification, spare parts availability from regional distributors, and on-site commissioning support. Operation manuals and operator training are included with every machine.
